LES Intercomparison Study for CBL: Horizontal Cross-Sectional Views

Last updated: May 2026

For case setup and physical parameters, see the Description notebook.

This notebook shows horizontal (x-y plane) cross-sections of the velocity components (\(u\), \(v\), \(w\)) and potential temperature (\(\theta\)). Cross-sections are extracted at four height levels near \(l_z/20\), \(l_z/10\), \(l_z/5\), and \(l_z/3\). The 3D fields are sampled at the end of the simulation (3.5 h). The reference run is 384x384x384_LASDD_SM_SP.

Load the necessary packages

import os
import re
import glob
import numpy as np
import matplotlib.pyplot as plt
from pathlib import Path

Input & Output Directories

# Base directory (jaxalfa/)
from pathlib import Path
def find_repo_root(start=None):
    path = Path(start or ('__file__' in globals() and __file__) or Path.cwd()).resolve()
    for candidate in (path, *path.parents):
        if (candidate / 'examples').is_dir() and (candidate / 'docs').is_dir():
            return candidate
    raise FileNotFoundError('Could not locate jaxalfa repository root')

BaseDir = find_repo_root()

# Reference run: 384x384x384 LASDD-SM single precision
RunDir    = BaseDir / 'examples/CBL_N91/runs/384x384x384_LASDD_SM_SP'
OutputDir = RunDir / 'output'

cfg = {}
exec((RunDir / 'Config.py').read_text(), cfg)

Load 3D fields from T = 3.5 h

T_snapshot = 3.5 * 3600  # unit: sec
dt = float(cfg['dt'])
iter_3D = int(T_snapshot / dt)
field_path = OutputDir / f'ALFA_3DFields_Iteration_{iter_3D}.npz'

if field_path.exists():
    File3D = np.load(field_path)
    u3D  = File3D['u']
    v3D  = File3D['v']
    w3D  = File3D['w']
    TH3D = File3D['TH']
else:
    nx = int(cfg['nx']); ny = int(cfg['ny']); nz = int(cfg['nz'])
    print(f'Missing {field_path}; plotting NaN placeholders for this run.')
    u3D = np.full((nx, ny, nz), np.nan)
    v3D = np.full((nx, ny, nz), np.nan)
    w3D = np.full((nx, ny, nz), np.nan)
    TH3D = np.full((nx, ny, nz), np.nan)

Input Information from the Config File

l_x = float(cfg['l_x'])
l_y = float(cfg['l_y'])
l_z = float(cfg['l_z'])
z_damping = float(cfg.get('z_damping', np.nan))
SimTime = float(cfg['SimTime'])

nx = int(cfg['nx'])
ny = int(cfg['ny'])
nz = int(cfg['nz'])
dx = l_x / nx
dy = l_y / ny
dz = l_z / (nz - 1)
x_axis = dx * np.arange(nx)
y_axis = dy * np.arange(ny)

Derived Variables

# Half levels for u, v, TH variables
z_u = np.array([(k + 0.5) * l_z / (nz - 1) for k in range(nz)])

# Full levels for w
z_w = np.array([k * l_z / (nz - 1) for k in range(nz)])

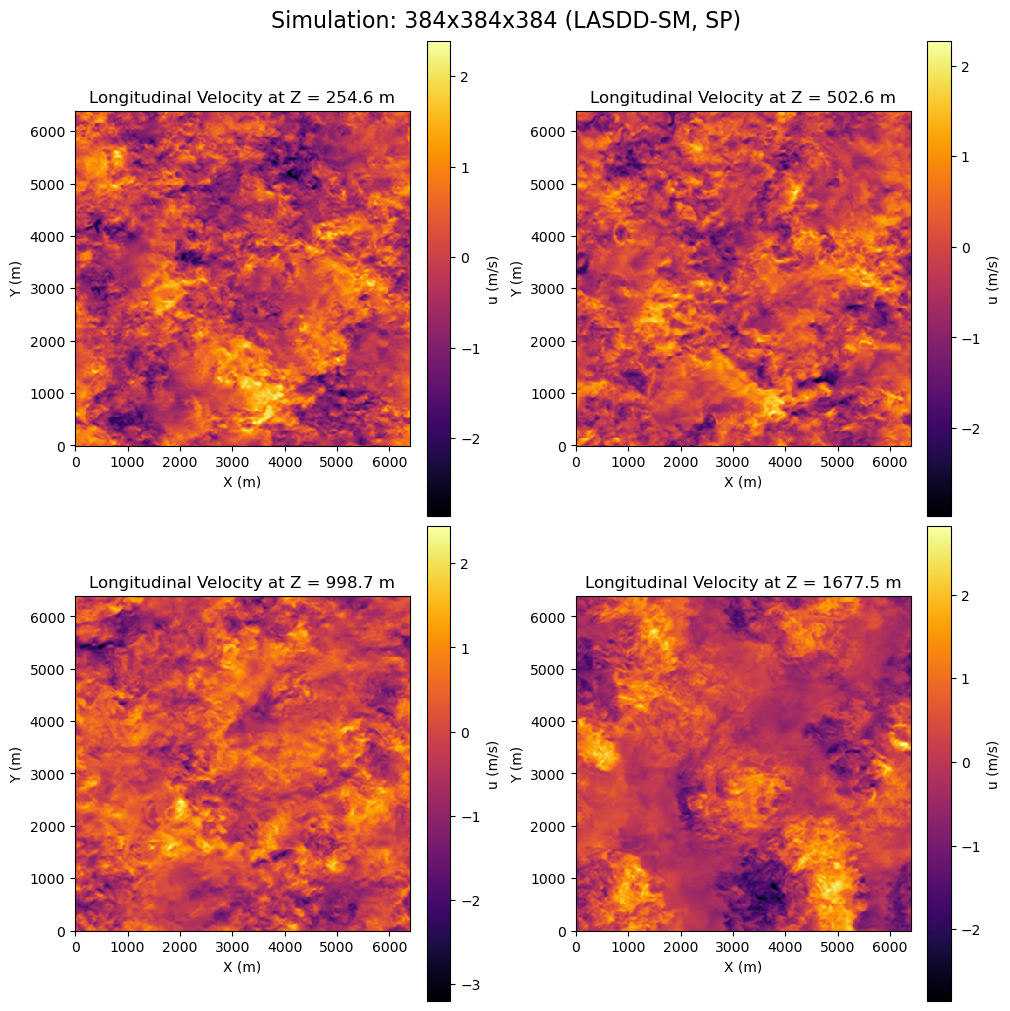

Plot horizontal cross-section of longitudinal velocity fields

fig, axes = plt.subplots(2, 2, figsize=(10, 10), constrained_layout=True)
axes = axes.flatten()

# Selected cross-sections at l_z/20, l_z/10, l_z/5, and l_z/3
k_levels = [int(nz/20), int(nz/10), int(nz/5), int(nz/3)]

for i, k in enumerate(k_levels):
    im = axes[i].pcolor(x_axis, y_axis, u3D[:,:,k].T, cmap='inferno')
    axes[i].set_title(f'Longitudinal Velocity at Z = {z_u[k]:.1f} m', fontsize=12)
    axes[i].set_xlabel('X (m)')
    axes[i].set_ylabel('Y (m)')
    axes[i].set_aspect('equal')
    fig.colorbar(im, ax=axes[i], label='u (m/s)')

fig.suptitle('Simulation: 384x384x384 (LASDD-SM, SP)', fontsize=16)
plt.show()

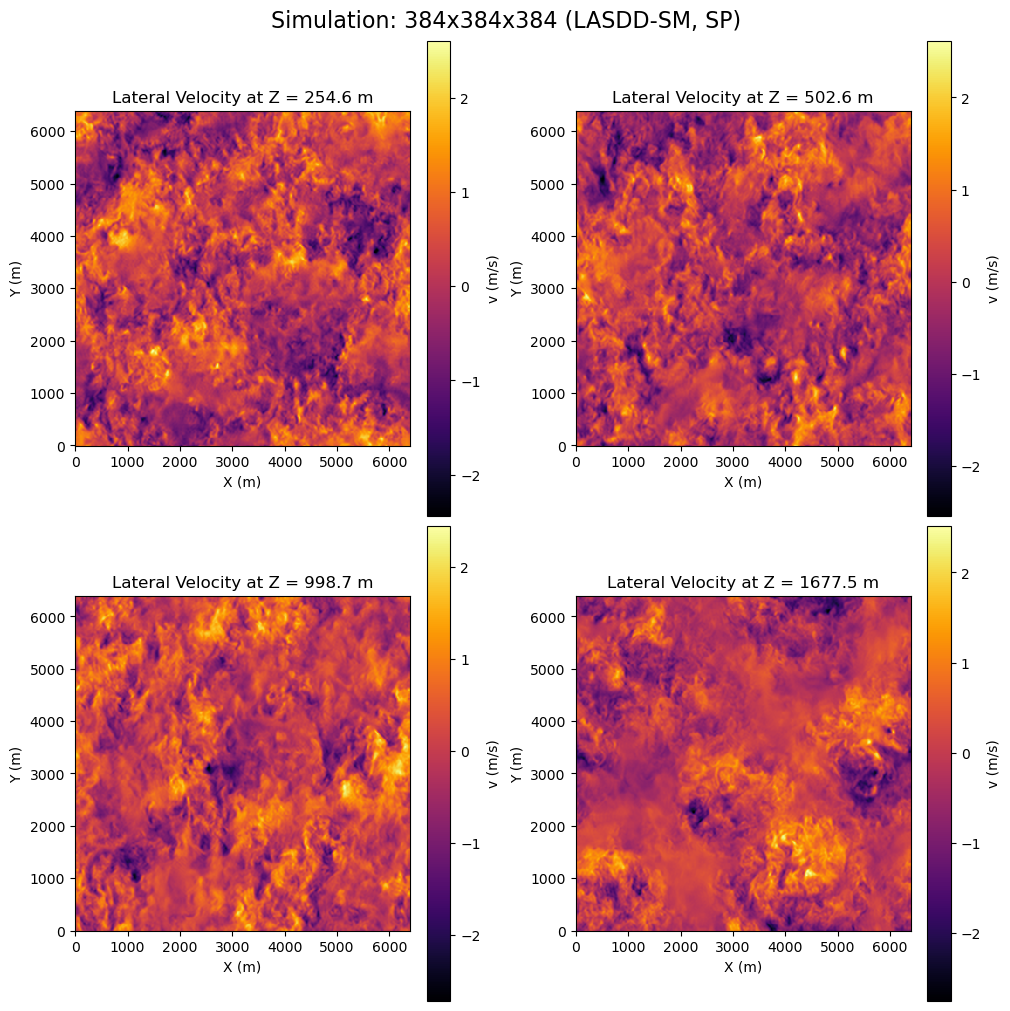

Plot horizontal cross-section of lateral velocity fields

fig, axes = plt.subplots(2, 2, figsize=(10, 10), constrained_layout=True)
axes = axes.flatten()

# Selected cross-sections at l_z/20, l_z/10, l_z/5, and l_z/3
k_levels = [int(nz/20), int(nz/10), int(nz/5), int(nz/3)]

for i, k in enumerate(k_levels):
    im = axes[i].pcolor(x_axis, y_axis, v3D[:,:,k].T, cmap='inferno')
    axes[i].set_title(f'Lateral Velocity at Z = {z_u[k]:.1f} m', fontsize=12)
    axes[i].set_xlabel('X (m)')
    axes[i].set_ylabel('Y (m)')
    axes[i].set_aspect('equal')
    fig.colorbar(im, ax=axes[i], label='v (m/s)')

fig.suptitle('Simulation: 384x384x384 (LASDD-SM, SP)', fontsize=16)
plt.show()

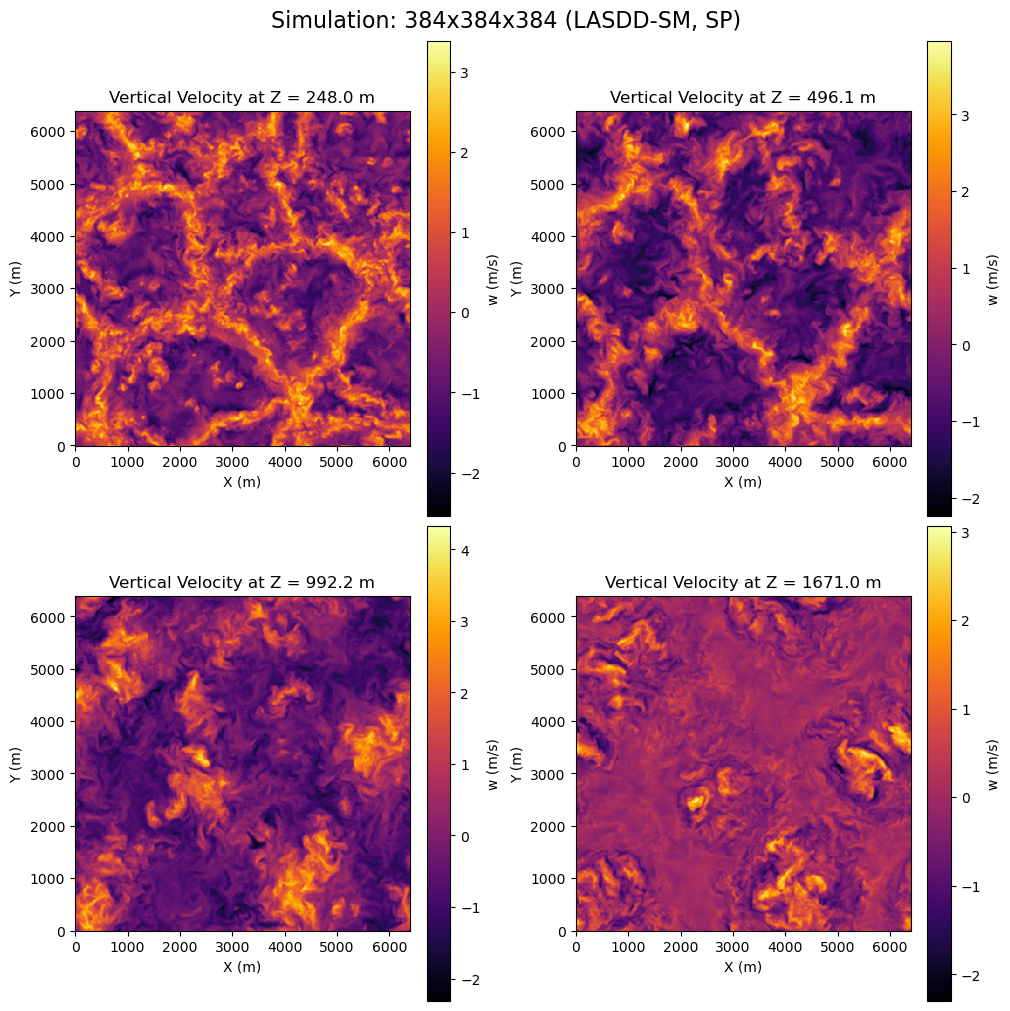

Plot horizontal cross-section of vertical velocity fields

fig, axes = plt.subplots(2, 2, figsize=(10, 10), constrained_layout=True)
axes = axes.flatten()

# Selected cross-sections at l_z/20, l_z/10, l_z/5, and l_z/3
k_levels = [int(nz/20), int(nz/10), int(nz/5), int(nz/3)]

for i, k in enumerate(k_levels):
    im = axes[i].pcolor(x_axis, y_axis, w3D[:,:,k].T, cmap='inferno')
    axes[i].set_title(f'Vertical Velocity at Z = {z_w[k]:.1f} m', fontsize=12)
    axes[i].set_xlabel('X (m)')
    axes[i].set_ylabel('Y (m)')
    axes[i].set_aspect('equal')
    fig.colorbar(im, ax=axes[i], label='w (m/s)')

fig.suptitle('Simulation: 384x384x384 (LASDD-SM, SP)', fontsize=16)
plt.show()

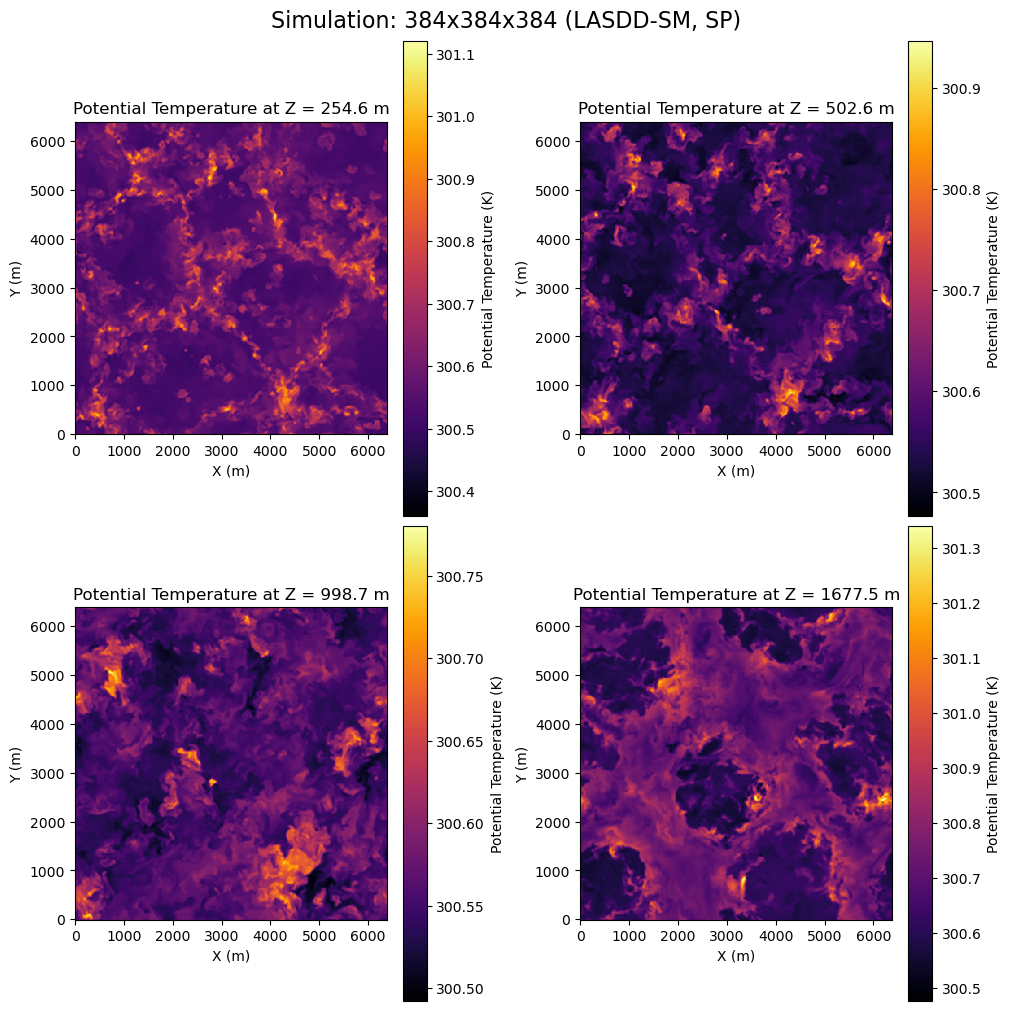

Plot horizontal cross-section of potential temperature fields

fig, axes = plt.subplots(2, 2, figsize=(10, 10), constrained_layout=True)
axes = axes.flatten()

# Selected cross-sections at l_z/20, l_z/10, l_z/5, and l_z/3
k_levels = [int(nz/20), int(nz/10), int(nz/5), int(nz/3)]

for i, k in enumerate(k_levels):
    im = axes[i].pcolor(x_axis, y_axis, TH3D[:,:,k].T, cmap='inferno')
    axes[i].set_title(f'Potential Temperature at Z = {z_u[k]:.1f} m', fontsize=12)
    axes[i].set_xlabel('X (m)')
    axes[i].set_ylabel('Y (m)')
    axes[i].set_aspect('equal')
    fig.colorbar(im, ax=axes[i], label='Potential Temperature (K)')

fig.suptitle('Simulation: 384x384x384 (LASDD-SM, SP)', fontsize=16)
plt.show()
