GABLS1 LES Intercomparison Study for Stable Boundary Layers: Sensitivity with respect to Numerical Precision
Last updated: June 2026
For case setup and physical parameters, see the Description notebook.
Precisions compared: double (DP), single (SP); SGS: LASDD-SM, grid: \(256^3\). Averaging window: 8–9 h.
Setup
The next cells load Python packages, locate the simulation outputs, and define the grid and averaging window used throughout the notebook.
[14]:
import os
import re
import glob
import numpy as np
import matplotlib.pyplot as plt
from pathlib import Path
Output directories
[15]:
from pathlib import Path
# Base directory (jaxalfa/)
def find_repo_root(start=None):
path = Path(start or ('__file__' in globals() and __file__) or Path.cwd()).resolve()
for candidate in (path, *path.parents):
if (candidate / 'examples').is_dir() and (candidate / 'docs').is_dir():
return candidate
raise FileNotFoundError('Could not locate jaxalfa repository root')
BaseDir = find_repo_root()
def read_config(run_dir):
cfg = {}
exec((run_dir / 'Config.py').read_text(), cfg)
return cfg
optSGS = 1 # LASDD-SM: 1, LASDD-WL: 2, LAD-SM: 3, LAD-WL: 4
optRes = 3 # 64x64x64: 1, 128x128x128: 2, 256x256x256: 3, 384x384x384: 4
_res = {1: '64x64x64', 2: '128x128x128', 3: '256x256x256', 4: '384x384x384'}
_sgs = {1: 'LASDD_SM', 2: 'LASDD_WL', 3: 'LAD_SM', 4: 'LAD_WL'}
_sgs_label = {1: 'LASDD-SM', 2: 'LASDD-WL', 3: 'LAD-SM', 4: 'LAD-WL'}
_res_label = {1: r'$64^3$', 2: r'$128^3$', 3: r'$256^3$', 4: r'$384^3$'}
_run = f"{_res[optRes]}_{_sgs[optSGS]}"
OutputDir_DP = BaseDir / f'examples/SBL_GABLS1/runs/{_run}_DP/output'
OutputDir_SP = BaseDir / f'examples/SBL_GABLS1/runs/{_run}_SP/output'
Case configuration
[16]:
_cfg_ref = read_config(OutputDir_DP.parent if (OutputDir_DP.parent / 'Config.py').exists() else OutputDir_SP.parent)
nz = int(_cfg_ref['nz'])
l_z = float(_cfg_ref['l_z'])
OutputInterval_sec = float(_cfg_ref.get('OutputInterval_sec', 60.0))
# Averaging window — GABLS1 quasi-steady state (hours 8–9)
T_start = 8 * 3600 # s
T_end = 9 * 3600 # s
Derived grid and averaging indices
[17]:
# Half levels — u, v, TH
z_1 = np.array([(k + 0.5) * l_z / (nz - 1) for k in range(nz)])
# Full levels — w, uw, vw, wTH, qz
z_w_1 = np.array([k * l_z / (nz - 1) for k in range(nz)])
# File indices for the averaging window
T_start_index = int(T_start / OutputInterval_sec) - 1
T_end_index = int(T_end / OutputInterval_sec) - 1
print(f'Averaging window: file indices {T_start_index} – {T_end_index}')
Averaging window: file indices 479 – 539
Statistics loader
[18]:
def LoadStatsAverage(stat_files, T_start_index, T_end_index, nz_expected):
if len(stat_files) == 0:
print(f'No statistics files available; plotting NaN placeholders for nz={nz_expected}.')
nan = np.full(nz_expected, np.nan)
return tuple(nan.copy() for _ in range(15))
U = []; V = []; TH = []
u2 = []; v2 = []; w2 = []; TH2 = []
uv = []; uw = []; vw = []
txy = []; txz = []; tyz = []
wTH = []; qz = []
for f in stat_files:
with np.load(f) as d:
U.append(d['U']); V.append(d['V']); TH.append(d['TH'])
u2.append(d['u2']); v2.append(d['v2']); w2.append(d['w2'])
TH2.append(d['TH2'])
uv.append(d['uv']); uw.append(d['uw']); vw.append(d['vw'])
txy.append(d['txy']); txz.append(d['txz']); tyz.append(d['tyz'])
wTH.append(d['wTH']); qz.append(d['qz'])
U = np.array(U); V = np.array(V); TH = np.array(TH)
u2 = np.array(u2); v2 = np.array(v2); w2 = np.array(w2); TH2 = np.array(TH2)
uv = np.array(uv); uw = np.array(uw); vw = np.array(vw)
txy = np.array(txy); txz = np.array(txz); tyz = np.array(tyz)
wTH = np.array(wTH); qz = np.array(qz)
sl = slice(T_start_index, min(T_end_index + 1, len(stat_files)))
if sl.start >= len(stat_files):
print(f'Averaging window starts after available files; plotting NaN placeholders for nz={nz_expected}.')
nan = np.full(nz_expected, np.nan)
return tuple(nan.copy() for _ in range(15))
return (
np.mean(U[sl], axis=0), np.mean(V[sl], axis=0), np.mean(TH[sl], axis=0),
np.mean(u2[sl], axis=0), np.mean(v2[sl], axis=0), np.mean(w2[sl], axis=0),
np.mean(TH2[sl], axis=0),
np.mean(uv[sl], axis=0), np.mean(uw[sl], axis=0), np.mean(vw[sl], axis=0),
np.mean(txy[sl], axis=0), np.mean(txz[sl], axis=0), np.mean(tyz[sl], axis=0),
np.mean(wTH[sl], axis=0), np.mean(qz[sl], axis=0)
)
Available statistics files
[19]:
def get_stat_files(output_dir):
files = sorted(
glob.glob(str(output_dir / 'ALFA_Statistics_Iteration_*.npz')),
key=lambda x: int(re.search(r'Iteration_(\d+)', x).group(1))
)
return files
StatFiles_DP = get_stat_files(OutputDir_DP)
StatFiles_SP = get_stat_files(OutputDir_SP)
Temporally averaged profiles
[20]:
(U_avg_DP, V_avg_DP, TH_avg_DP,
u2_avg_DP, v2_avg_DP, w2_avg_DP, TH2_avg_DP,
uv_avg_DP, uw_avg_DP, vw_avg_DP,
txy_avg_DP, txz_avg_DP, tyz_avg_DP,
wTH_avg_DP, qz_avg_DP) = LoadStatsAverage(StatFiles_DP, T_start_index, T_end_index, nz)
(U_avg_SP, V_avg_SP, TH_avg_SP,
u2_avg_SP, v2_avg_SP, w2_avg_SP, TH2_avg_SP,
uv_avg_SP, uw_avg_SP, vw_avg_SP,
txy_avg_SP, txz_avg_SP, tyz_avg_SP,
wTH_avg_SP, qz_avg_SP) = LoadStatsAverage(StatFiles_SP, T_start_index, T_end_index, nz)
M_avg_DP = np.sqrt(U_avg_DP**2 + V_avg_DP**2)
uw_tot_DP = uw_avg_DP + txz_avg_DP
vw_tot_DP = vw_avg_DP + tyz_avg_DP
wTH_tot_DP = wTH_avg_DP + qz_avg_DP
M_avg_SP = np.sqrt(U_avg_SP**2 + V_avg_SP**2)
uw_tot_SP = uw_avg_SP + txz_avg_SP
vw_tot_SP = vw_avg_SP + tyz_avg_SP
wTH_tot_SP = wTH_avg_SP + qz_avg_SP
print(f'Averaging over {T_end_index - T_start_index + 1} files '
f'({T_start/3600:.1f}–{T_end/3600:.1f} h)')
Averaging over 61 files (8.0–9.0 h)
[21]:
plt.rcParams.update({
"text.usetex": True,
"font.size": 14,
"axes.labelsize": 16,
"xtick.labelsize": 12,
"ytick.labelsize": 12
})
[22]:
def plot_profile(x, z, xlabel, ylabel=r"$z$ (m)", linestyle='-k', label=None, ax=None):
if ax is None:
fig, ax = plt.subplots(figsize=(5, 6), constrained_layout=True)
ax.plot(x, z, linestyle, linewidth=2, label=label)
ax.set_xlabel(xlabel)
ax.set_ylabel(ylabel)
ax.grid(False)

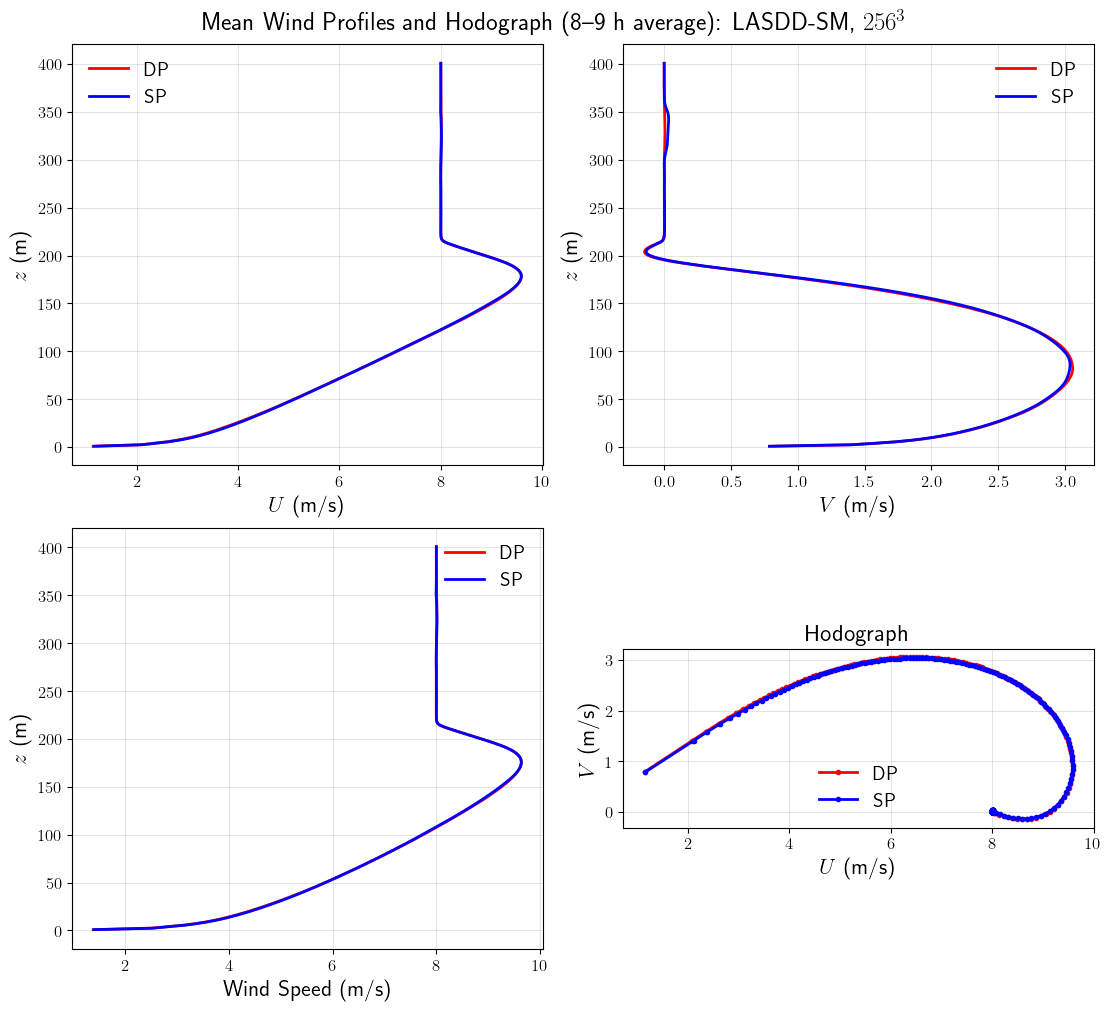

Mean Wind and Hodograph
The first comparison shows the mean streamwise and cross-stream wind components, the wind-speed magnitude, and the hodograph over the 8-9 h averaging window.
[23]:
fig, axs = plt.subplots(2, 2, figsize=(11, 10), constrained_layout=True)
axs = axs.ravel()
run_styles = {
'DP': {'color': 'red', 'linestyle': '-'},
'SP': {'color': 'blue', 'linestyle': '-'},
}
def plot_run_profile(ax, x, z, xlabel, run_label):
style = run_styles[run_label]
ax.plot(x, z, color=style['color'], linestyle=style['linestyle'], linewidth=2, label=run_label)
ax.set_xlabel(xlabel)
ax.set_ylabel(r"$z$ (m)")
plot_run_profile(axs[0], U_avg_DP, z_1, r"$U$ (m/s)", 'DP')
plot_run_profile(axs[0], U_avg_SP, z_1, r"$U$ (m/s)", 'SP')
plot_run_profile(axs[1], V_avg_DP, z_1, r"$V$ (m/s)", 'DP')
plot_run_profile(axs[1], V_avg_SP, z_1, r"$V$ (m/s)", 'SP')
plot_run_profile(axs[2], M_avg_DP, z_1, r"Wind Speed (m/s)", 'DP')
plot_run_profile(axs[2], M_avg_SP, z_1, r"Wind Speed (m/s)", 'SP')
axs[3].plot(U_avg_DP, V_avg_DP, color='red', linestyle='-', marker='o', linewidth=2, markersize=3, label='DP')
axs[3].plot(U_avg_SP, V_avg_SP, color='blue', linestyle='-', marker='o', linewidth=2, markersize=3, label='SP')
axs[3].set_xlabel(r"$U$ (m/s)")
axs[3].set_ylabel(r"$V$ (m/s)")
axs[3].set_title('Hodograph')
axs[3].set_aspect('equal')
for ax in axs:
ax.grid()
ax.legend(frameon=False)
fig.suptitle(
f"Mean Wind Profiles and Hodograph (8--9 h average): "
f"{_sgs_label[optSGS]}, {_res_label[optRes]}",
fontsize=18
)
plt.show()

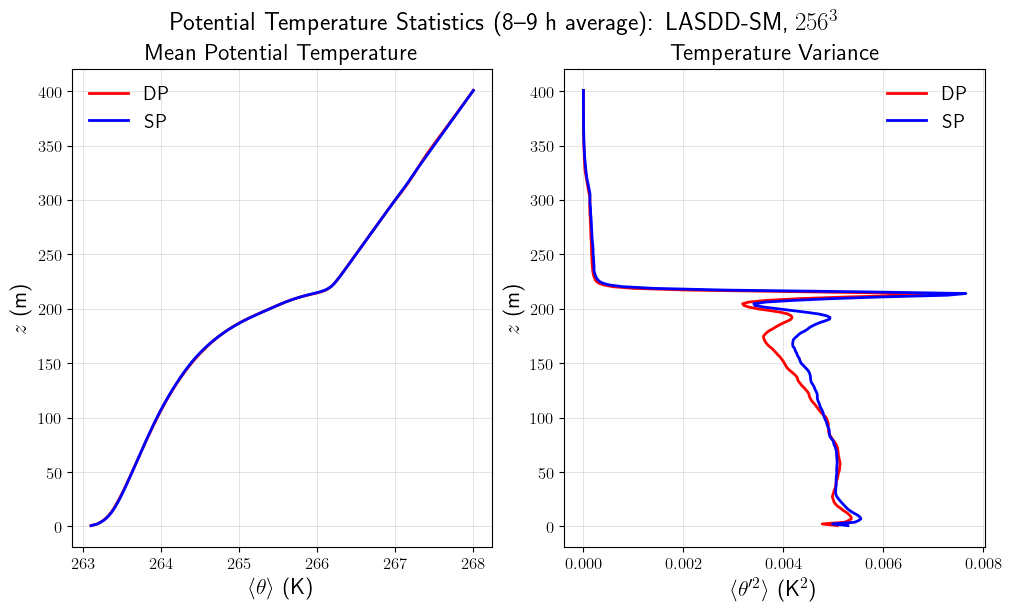

Mean Potential Temperature and Temperature Variance
The two panels compare the horizontally averaged potential-temperature profile and the resolved temperature variance over the 8-9 h averaging window.
[24]:
fig, axs = plt.subplots(1, 2, figsize=(10, 6), constrained_layout=True)
plot_run_profile(axs[0], TH_avg_DP, z_1, r"$\langle \theta \rangle$ (K)", 'DP')
plot_run_profile(axs[0], TH_avg_SP, z_1, r"$\langle \theta \rangle$ (K)", 'SP')
axs[0].set_title("Mean Potential Temperature")
plot_run_profile(axs[1], TH2_avg_DP, z_1, r"$\langle \theta^{\prime 2} \rangle$ (K$^2$)", 'DP')
plot_run_profile(axs[1], TH2_avg_SP, z_1, r"$\langle \theta^{\prime 2} \rangle$ (K$^2$)", 'SP')
axs[1].set_title("Temperature Variance")
for ax in axs:
ax.grid()
ax.legend(frameon=False)
fig.suptitle(
f"Potential Temperature Statistics (8--9 h average): "
f"{_sgs_label[optSGS]}, {_res_label[optRes]}",
fontsize=18
)
plt.show()

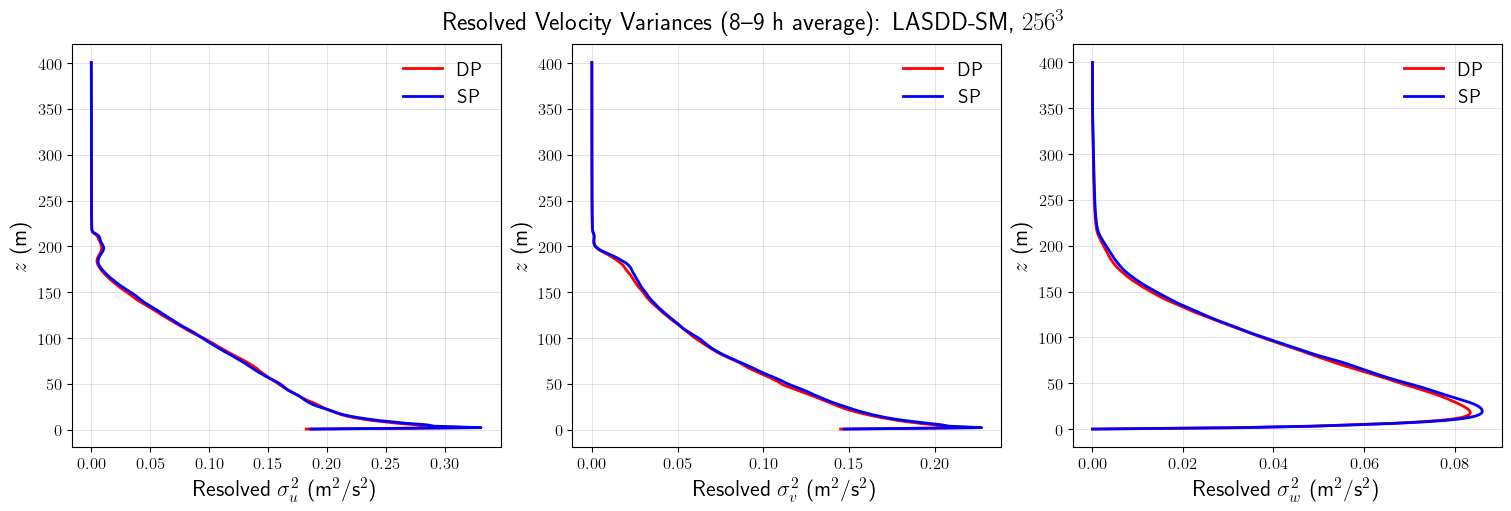

Resolved Velocity Variances
The resolved variance profiles indicate how the resolved turbulent kinetic energy is distributed among the three velocity components.
[25]:
fig, axs = plt.subplots(1, 3, figsize=(15, 5), constrained_layout=True)
plot_profile(u2_avg_DP, z_1, xlabel=r"Resolved $\sigma_u^2$ (m$^2$/s$^2$)", linestyle='-r', ax=axs[0], label='DP')
plot_profile(u2_avg_SP, z_1, xlabel=r"Resolved $\sigma_u^2$ (m$^2$/s$^2$)", linestyle='-b', ax=axs[0], label='SP')
plot_profile(v2_avg_DP, z_1, xlabel=r"Resolved $\sigma_v^2$ (m$^2$/s$^2$)", linestyle='-r', ax=axs[1], label='DP')
plot_profile(v2_avg_SP, z_1, xlabel=r"Resolved $\sigma_v^2$ (m$^2$/s$^2$)", linestyle='-b', ax=axs[1], label='SP')
plot_profile(w2_avg_DP, z_w_1, xlabel=r"Resolved $\sigma_w^2$ (m$^2$/s$^2$)", linestyle='-r', ax=axs[2], label='DP')
plot_profile(w2_avg_SP, z_w_1, xlabel=r"Resolved $\sigma_w^2$ (m$^2$/s$^2$)", linestyle='-b', ax=axs[2], label='SP')
axs[0].grid(); axs[0].legend(frameon=False)
axs[1].grid(); axs[1].legend(frameon=False)
axs[2].grid(); axs[2].legend(frameon=False)
fig.suptitle(
f"Resolved Velocity Variances (8--9 h average): "
f"{_sgs_label[optSGS]}, {_res_label[optRes]}",
fontsize=18
)
plt.show()

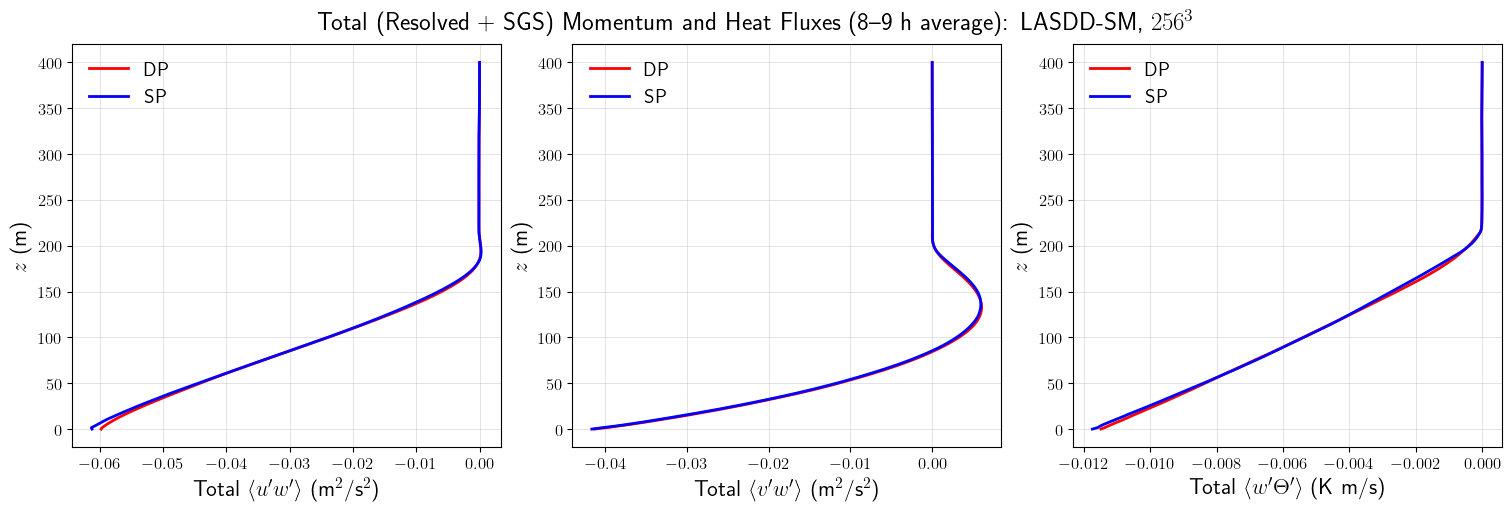

Total Momentum and Heat Fluxes
The total vertical momentum and heat fluxes combine resolved and SGS contributions. Double- and single-precision runs are compared at the selected resolution and SGS model.
[26]:
fig, axs = plt.subplots(1, 3, figsize=(15, 5), constrained_layout=True)
plot_profile(uw_tot_DP, z_w_1, xlabel=r"Total $\langle u'w' \rangle$ (m$^2$/s$^2$)", linestyle='-r', label='DP', ax=axs[0])
plot_profile(uw_tot_SP, z_w_1, xlabel=r"Total $\langle u'w' \rangle$ (m$^2$/s$^2$)", linestyle='-b', label='SP', ax=axs[0])
axs[0].grid()
axs[0].legend(frameon=False)
plot_profile(vw_tot_DP, z_w_1, xlabel=r"Total $\langle v'w' \rangle$ (m$^2$/s$^2$)", linestyle='-r', label='DP', ax=axs[1])
plot_profile(vw_tot_SP, z_w_1, xlabel=r"Total $\langle v'w' \rangle$ (m$^2$/s$^2$)", linestyle='-b', label='SP', ax=axs[1])
axs[1].grid()
axs[1].legend(frameon=False)
plot_profile(wTH_tot_DP, z_w_1, xlabel=r"Total $\langle w'\Theta' \rangle$ (K m/s)", linestyle='-r', label='DP', ax=axs[2])
plot_profile(wTH_tot_SP, z_w_1, xlabel=r"Total $\langle w'\Theta' \rangle$ (K m/s)", linestyle='-b', label='SP', ax=axs[2])
axs[2].grid()
axs[2].legend(frameon=False)
fig.suptitle(
f"Total (Resolved + SGS) Momentum and Heat Fluxes (8--9 h average): "
f"{_sgs_label[optSGS]}, {_res_label[optRes]}",
fontsize=18
)
plt.show()
