GABLS3 LES Intercomparison Study for Stable Boundary Layers: Time–Height Diagnostics
Last updated: June 2026
This notebook visualizes the JAX-ALFA simulation of the GABLS3 intercomparison case. The simulation covers 9 hours from 00 UTC to 09 UTC, 2 July 2006, at Cabauw, Netherlands.
Quantity |
Value |
|---|---|
Domain |
800 m × 800 m × 800 m |
Grid |
\(256^3\) |
Time step |
0.1 s |
Simulation time |
32 400 s (9 h) |
Roughness length |
\(z_0 = 0.15\) m |
Screen temperature/humidity height |
\(z_T = z_Q = 0.25\) m |
Geostrophic wind |
time- and height-varying (\(\texttt{optGeoWind}=1\)) |
Large-scale advection |
time- and height-varying (\(\texttt{optAdvection}=1\)) |
Moisture |
prognostic specific humidity (\(\texttt{optMoisture}=1\)) |
SGS model |
LASDD-SM (\(\texttt{optSgs}=1\)) |
Figures show time–height contour plots of mean wind, potential temperature, specific humidity, resolved variances, and total (resolved + SGS) fluxes.
Setup
[1]:
import os
import re
import glob
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
from pathlib import Path
Output directory and case configuration
[2]:
from pathlib import Path
def find_repo_root(start=None):
path = Path(start or ('__file__' in globals() and __file__) or Path.cwd()).resolve()
for candidate in (path, *path.parents):
if (candidate / 'examples').is_dir() and (candidate / 'docs').is_dir():
return candidate
raise FileNotFoundError('Could not locate jaxalfa repository root')
BaseDir = find_repo_root()
RunDir = BaseDir / 'examples/SBL_GABLS3/runs/256x256x256_LASDD_SM_SP'
OutputDir = RunDir / 'output'
# Read case parameters directly from Config.py so the notebook stays in sync.
_cfg = {}
exec((RunDir / 'Config.py').read_text(), _cfg)
nz = int(_cfg['nz'])
l_z = float(_cfg['l_z'])
dt = float(_cfg['dt'])
SimTime = float(_cfg['SimTime'])
T_0 = float(_cfg['T_0'])
optGeoWind = int(_cfg.get('optGeoWind', 0))
optAdvection = int(_cfg.get('optAdvection', 0))
optMoisture = int(_cfg.get('optMoisture', 0))
optSgs = int(_cfg['optSgs'])
OutputInterval_sec = float(_cfg['OutputInterval_sec'])
print('BaseDir:', BaseDir)
print('RunDir: ', RunDir)
print(f'nz={nz}, l_z={l_z:g} m, dt={dt:g} s, OutputInterval={OutputInterval_sec:g} s')
print(f'optGeoWind={optGeoWind}, optAdvection={optAdvection}, '
f'optMoisture={optMoisture}, optSgs={optSgs}')
BaseDir: /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa
RunDir: /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa/examples/SBL_GABLS3/runs/256x256x256_LASDD_SM_SP
nz=256, l_z=800 m, dt=0.05 s, OutputInterval=300 s
optGeoWind=1, optAdvection=1, optMoisture=1, optSgs=1
Vertical grid
[3]:
dz = l_z / (nz - 1)
# Half levels — U, V, TH, Q, u2, v2, TH2, Q2
z = np.array([(k + 0.5) * dz for k in range(nz)])
# Full (staggered) levels — w, uw, vw, wTH, wQ, txz, tyz, qz, qHz, w2
z_w = np.array([k * dz for k in range(nz)])
print(f'dz = {dz:.3f} m, z[0] = {z[0]:.3f} m, z[-1] = {z[-1]:.3f} m')
dz = 3.137 m, z[0] = 1.569 m, z[-1] = 801.569 m
Load output files
[4]:
stat_files = sorted(
glob.glob(str(OutputDir / 'ALFA_Statistics_Iteration_*.npz')),
key=lambda x: int(re.search(r'Iteration_(\d+)', x).group(1))
)
n_files = len(stat_files)
missing_stats = (n_files == 0)
print(f'Found {n_files} output files in {OutputDir}')
if n_files == 0:
raise FileNotFoundError(
f'No statistics files found in {OutputDir}. Run the GABLS3 case first; '
'the notebook expects ALFA_Statistics_Iteration_*.npz files.'
)
Found 108 output files in /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa/examples/SBL_GABLS3/runs/256x256x256_LASDD_SM_SP/output
[5]:
# Build UTC time axis from file iteration numbers.
# GABLS3 simulation starts at 00 UTC, so no offset needed.
if missing_stats:
t_hours = np.array([0.0, SimTime / 3600.0])
else:
iterations = np.array([
int(re.search(r'Iteration_(\d+)', f).group(1)) for f in stat_files
])
t_hours = iterations * dt / 3600.0 # UTC hours (0-9)
print(f'Time range: {t_hours[0]:.3f} - {t_hours[-1]:.2f} UTC h')
Time range: 0.083 - 9.00 UTC h
[6]:
# Allocate (n_files, nz) arrays.
U = np.zeros((n_files, nz))
V = np.zeros((n_files, nz))
TH = np.zeros((n_files, nz))
u2 = np.zeros((n_files, nz))
v2 = np.zeros((n_files, nz))
w2 = np.zeros((n_files, nz))
TH2 = np.zeros((n_files, nz))
uw = np.zeros((n_files, nz))
vw = np.zeros((n_files, nz))
wTH = np.zeros((n_files, nz))
txz = np.zeros((n_files, nz))
tyz = np.zeros((n_files, nz))
qz = np.zeros((n_files, nz))
ustar = np.zeros(n_files)
qz_sfc = np.zeros(n_files)
# Moisture arrays (populated only when optMoisture >= 1).
Q = np.zeros((n_files, nz))
Q2 = np.zeros((n_files, nz))
wQ = np.zeros((n_files, nz))
qHz = np.zeros((n_files, nz))
qm_sfc = np.zeros(n_files)
if missing_stats:
for arr in [U, V, TH, u2, v2, w2, TH2, uw, vw, wTH, txz, tyz, qz,
Q, Q2, wQ, qHz]:
arr[:] = np.nan
ustar[:] = np.nan
qz_sfc[:] = np.nan
qm_sfc[:] = np.nan
for i, f in enumerate(stat_files):
with np.load(f) as d:
U[i] = d['U']
V[i] = d['V']
TH[i] = d['TH']
u2[i] = d['u2']
v2[i] = d['v2']
w2[i] = d['w2']
TH2[i] = d['TH2']
uw[i] = d['uw']
vw[i] = d['vw']
wTH[i] = d['wTH']
txz[i] = d['txz']
tyz[i] = d['tyz']
qz[i] = d['qz']
ustar[i] = np.asarray(d['ustar']).mean()
qz_sfc[i] = np.asarray(d['qz_sfc']).mean()
if optMoisture >= 1:
Q[i] = d['Q']
Q2[i] = d['Q2']
wQ[i] = d['wQ']
qHz[i] = d['qHz']
qm_sfc[i] = np.asarray(d['qm_sfc']).mean()
# Total (resolved + SGS) vertical fluxes.
uw_tot = uw + txz
vw_tot = vw + tyz
wTH_tot = wTH + qz
wQ_tot = wQ + qHz
print('Data loaded.')
Data loaded.
Plot style
[7]:
plt.rcParams.update({
'text.usetex' : False,
'font.size' : 13,
'axes.labelsize' : 14,
'xtick.labelsize': 11,
'ytick.labelsize': 11,
})
# GABLS3 is a shallow nocturnal SBL; show only the lowest 600 m.
z_max = 600.0
# UTC tick positions every hour.
utc_ticks = np.arange(0, 10, 1)
def th_plot(ax, t_hours, z_axis, field, cmap, label, z_max=z_max):
"""Standard time-height pcolormesh helper."""
pc = ax.pcolormesh(t_hours, z_axis, field.T,
cmap=cmap, shading='auto')
cb = plt.colorbar(pc, ax=ax, pad=0.02)
cb.set_label(label)
ax.set_xlabel(r'UTC (h)')
ax.set_ylabel(r'$z$ (m)')
ax.set_ylim(0, z_max)
ax.set_xticks(utc_ticks)
ax.xaxis.set_minor_locator(ticker.MultipleLocator(0.5))
return pc
def symm_limits(data):
"""Return vmin/vmax centred on zero for a diverging colormap."""
amax = np.nanmax(np.abs(data))
return -amax, amax

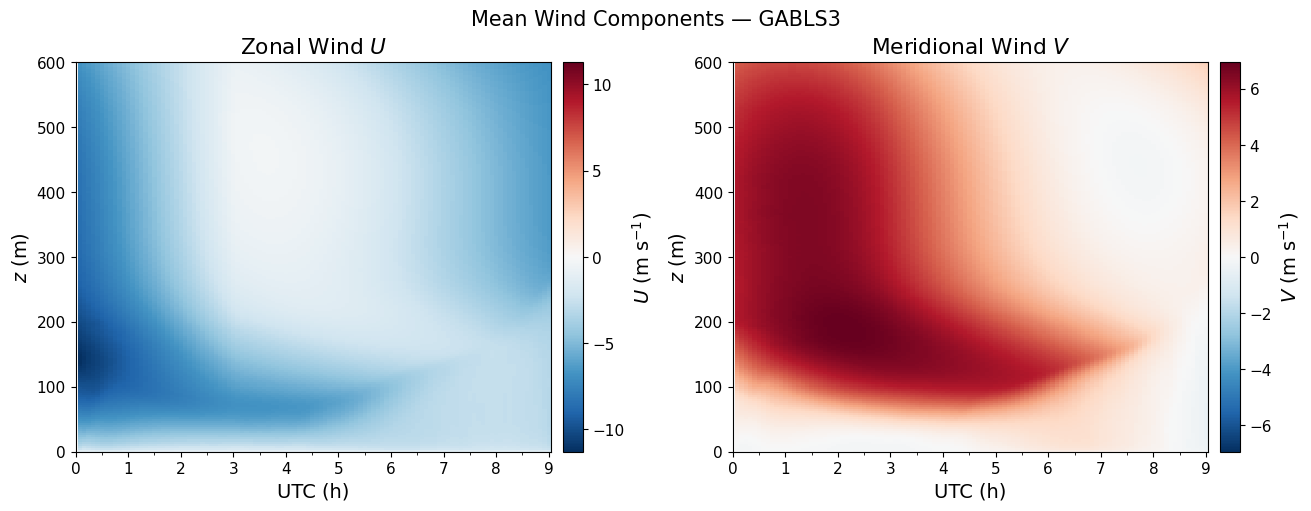

Mean Wind Components
Time–height evolution of the planar-mean zonal (\(U\)) and meridional (\(V\)) wind.
[8]:
fig, axs = plt.subplots(1, 2, figsize=(13, 5), constrained_layout=True)
pc = th_plot(axs[0], t_hours, z, U, 'RdBu_r', r'$U$ (m s$^{-1}$)')
pc.set_clim(*symm_limits(U[:, z <= z_max]))
axs[0].set_title(r'Zonal Wind $U$')
pc = th_plot(axs[1], t_hours, z, V, 'RdBu_r', r'$V$ (m s$^{-1}$)')
pc.set_clim(*symm_limits(V[:, z <= z_max]))
axs[1].set_title(r'Meridional Wind $V$')
fig.suptitle('Mean Wind Components — GABLS3', fontsize=15)
plt.show()

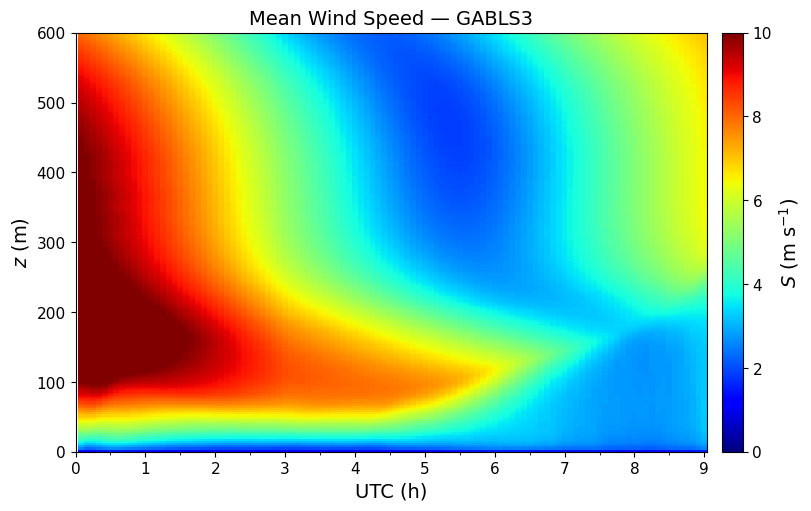

Mean Wind Speed
\[S = \sqrt{U^2 + V^2}\]
[9]:
S = np.sqrt(U**2 + V**2)
fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)
pc = th_plot(ax, t_hours, z, S, 'jet', r'$S$ (m s$^{-1}$)')
pc.set_clim(0, 10)
ax.set_title(r'Mean Wind Speed — GABLS3', fontsize=14)
plt.show()

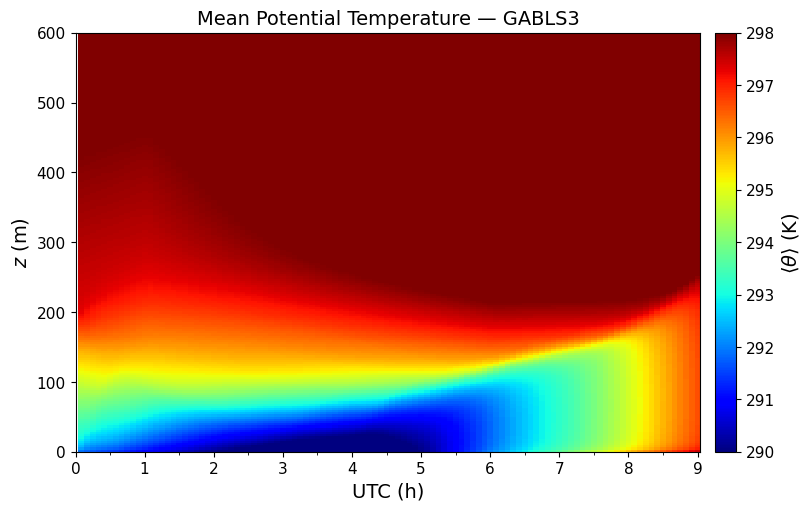

Mean Potential Temperature
Nocturnal cooling drives a progressively stable stratification from the surface upward.
[10]:
fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)
pc = th_plot(ax, t_hours, z, TH, 'jet', r'$\langle\theta\rangle$ (K)')
pc.set_clim(290, 298)
ax.set_title(r'Mean Potential Temperature — GABLS3', fontsize=14)
plt.show()

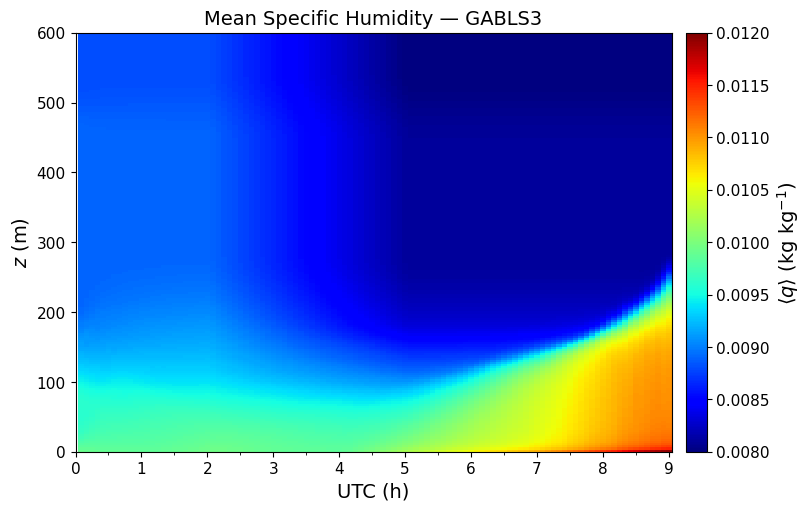

Mean Specific Humidity
Moisture transport driven by the nocturnal surface flux and large-scale advection (Table 7).
[11]:
if optMoisture >= 1:
fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)
pc = th_plot(ax, t_hours, z, Q, 'jet',
r'$\langle q \rangle$ (kg kg$^{-1}$)')
pc.set_clim(0.008, 0.012)
ax.set_title(r'Mean Specific Humidity — GABLS3', fontsize=14)
plt.show()
else:
print('optMoisture = 0: no moisture data.')

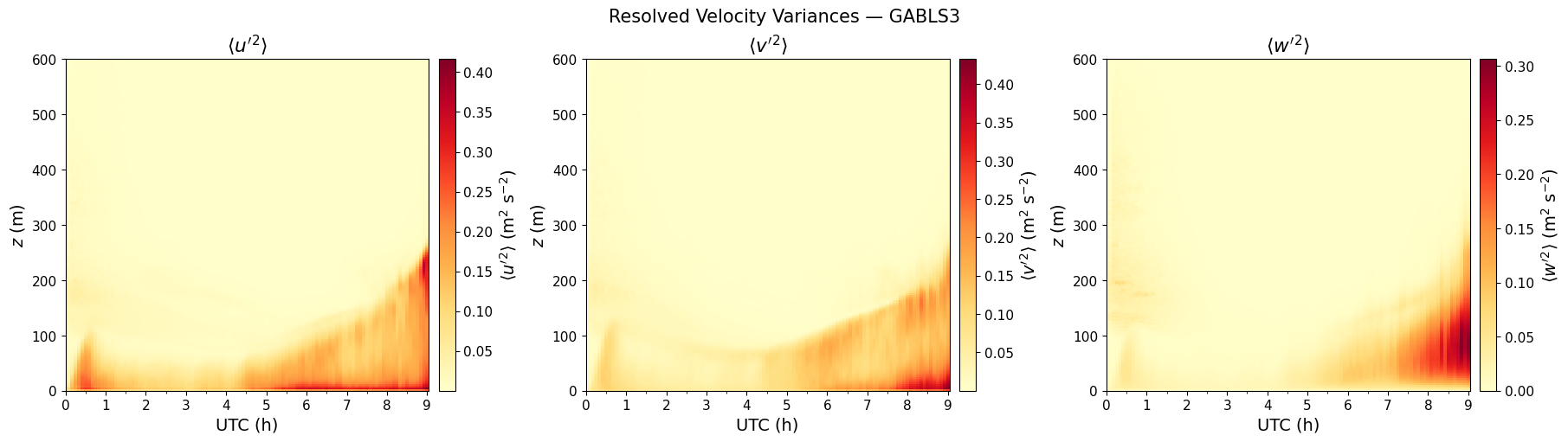

Resolved Velocity Variances
Turbulent activity is confined to the shallow nocturnal SBL.
[12]:
fig, axs = plt.subplots(1, 3, figsize=(18, 5), constrained_layout=True)
th_plot(axs[0], t_hours, z, u2, 'YlOrRd', r"$\langle u'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[0].set_title(r"$\langle u'^2 \rangle$")
th_plot(axs[1], t_hours, z, v2, 'YlOrRd', r"$\langle v'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[1].set_title(r"$\langle v'^2 \rangle$")
th_plot(axs[2], t_hours, z_w, w2, 'YlOrRd', r"$\langle w'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[2].set_title(r"$\langle w'^2 \rangle$")
fig.suptitle('Resolved Velocity Variances — GABLS3', fontsize=15)
plt.show()

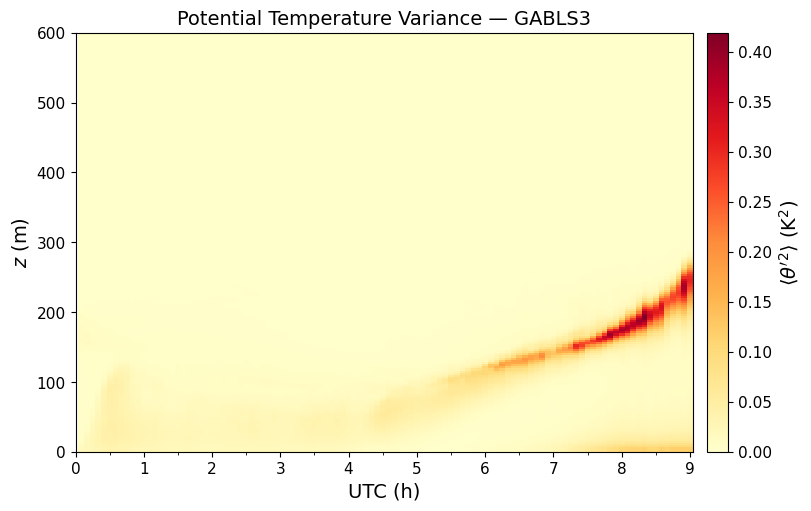

Potential Temperature Variance
[13]:
fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)
th_plot(ax, t_hours, z, TH2, 'YlOrRd', r"$\langle\theta'^2\rangle$ (K$^2$)")
ax.set_title(r"Potential Temperature Variance — GABLS3", fontsize=14)
plt.show()

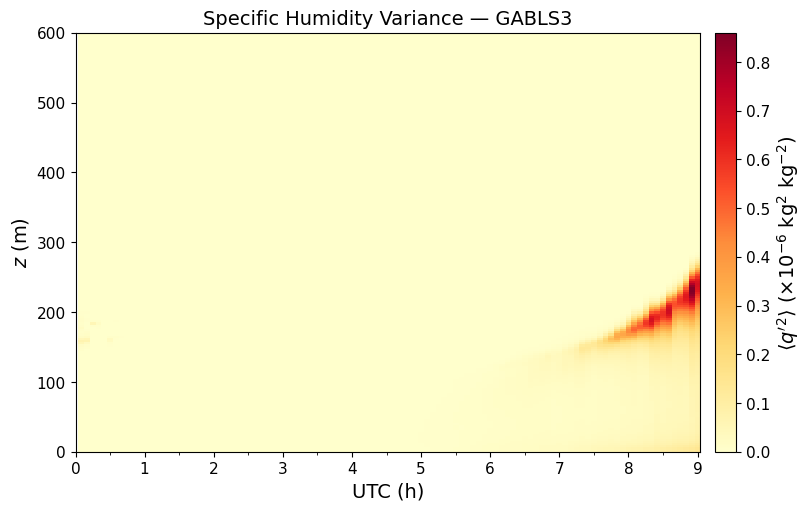

Specific Humidity Variance
[14]:
if optMoisture >= 1:
fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)
th_plot(ax, t_hours, z, Q2 * 1e6, 'YlOrRd',
r"$\langle q'^2\rangle$ ($\times 10^{-6}$ kg$^2$ kg$^{-2}$)")
ax.set_title(r"Specific Humidity Variance — GABLS3", fontsize=14)
plt.show()
else:
print('optMoisture = 0: no moisture data.')

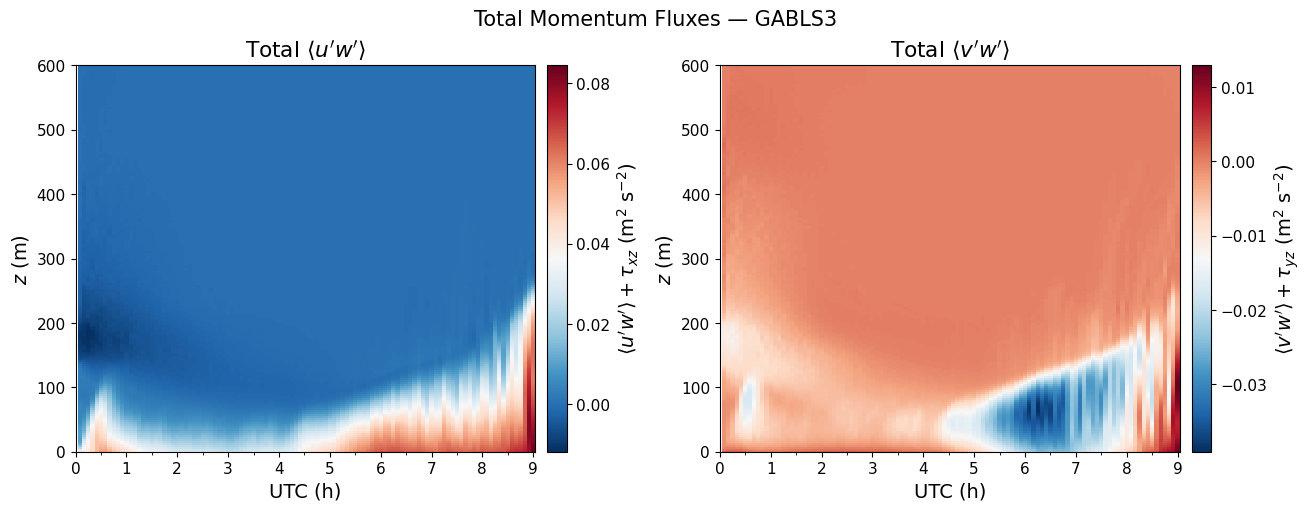

Total Momentum Fluxes (Resolved + SGS)
\[\langle u'w' \rangle_{\mathrm{tot}} = \langle u'w' \rangle + \tau_{xz}, \qquad
\langle v'w' \rangle_{\mathrm{tot}} = \langle v'w' \rangle + \tau_{yz}\]
[15]:
fig, axs = plt.subplots(1, 2, figsize=(13, 5), constrained_layout=True)
th_plot(axs[0], t_hours, z_w, uw_tot, 'RdBu_r',
r"$\langle u'w'\rangle + \tau_{xz}$ (m$^2$ s$^{-2}$)")
axs[0].set_title(r"Total $\langle u'w' \rangle$")
th_plot(axs[1], t_hours, z_w, vw_tot, 'RdBu_r',
r"$\langle v'w'\rangle + \tau_{yz}$ (m$^2$ s$^{-2}$)")
axs[1].set_title(r"Total $\langle v'w' \rangle$")
fig.suptitle('Total Momentum Fluxes — GABLS3', fontsize=15)
plt.show()

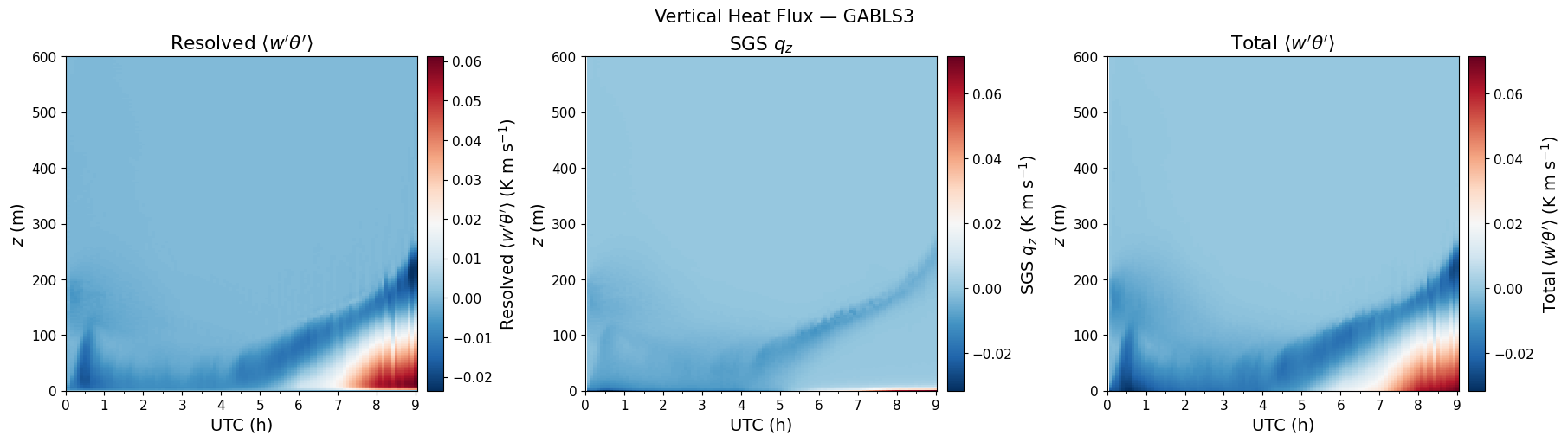

Total Heat Flux (Resolved + SGS)
\[\langle w'\theta' \rangle_{\mathrm{tot}} = \langle w'\theta' \rangle + q_z\]
Downward (negative) heat flux throughout the nocturnal period.
[16]:
fig, axs = plt.subplots(1, 3, figsize=(18, 5), constrained_layout=True)
th_plot(axs[0], t_hours, z_w, wTH, 'RdBu_r',
r"Resolved $\langle w'\theta'\rangle$ (K m s$^{-1}$)")
axs[0].set_title(r"Resolved $\langle w'\theta' \rangle$")
th_plot(axs[1], t_hours, z_w, qz, 'RdBu_r',
r"SGS $q_z$ (K m s$^{-1}$)")
axs[1].set_title(r"SGS $q_z$")
th_plot(axs[2], t_hours, z_w, wTH_tot, 'RdBu_r',
r"Total $\langle w'\theta'\rangle$ (K m s$^{-1}$)")
axs[2].set_title(r"Total $\langle w'\theta' \rangle$")
fig.suptitle('Vertical Heat Flux — GABLS3', fontsize=15)
plt.show()

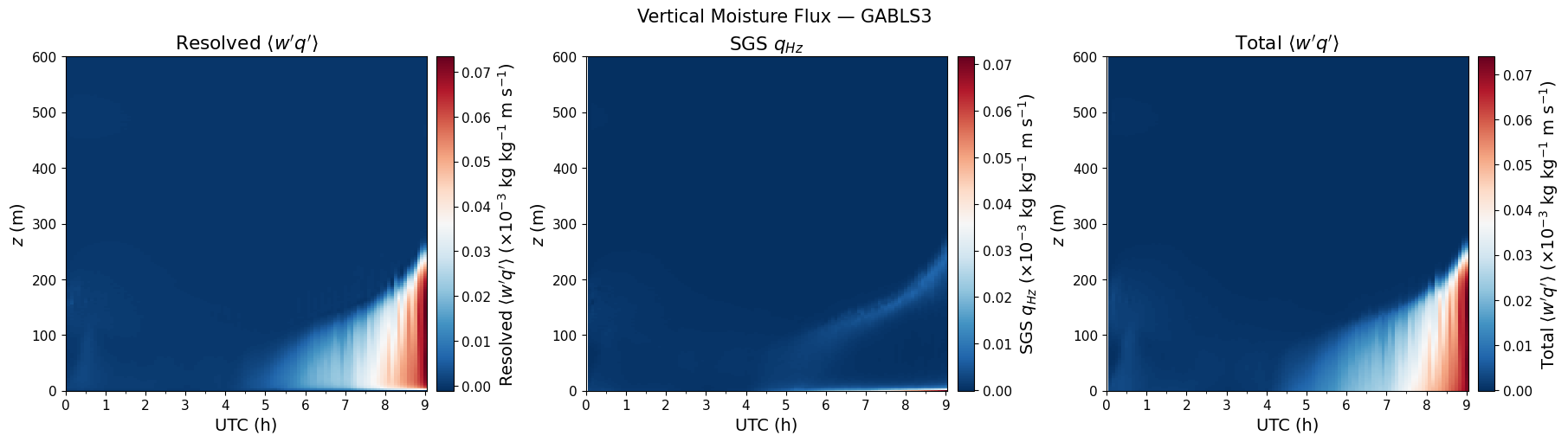

Total Moisture Flux (Resolved + SGS)
\[\langle w'q' \rangle_{\mathrm{tot}} = \langle w'q' \rangle + q_{Hz}\]
[17]:
if optMoisture >= 1:
fig, axs = plt.subplots(1, 3, figsize=(18, 5), constrained_layout=True)
th_plot(axs[0], t_hours, z_w, wQ * 1e3, 'RdBu_r',
r"Resolved $\langle w'q'\rangle$ ($\times 10^{-3}$ kg kg$^{-1}$ m s$^{-1}$)")
axs[0].set_title(r"Resolved $\langle w'q' \rangle$")
th_plot(axs[1], t_hours, z_w, qHz * 1e3, 'RdBu_r',
r"SGS $q_{Hz}$ ($\times 10^{-3}$ kg kg$^{-1}$ m s$^{-1}$)")
axs[1].set_title(r"SGS $q_{Hz}$")
th_plot(axs[2], t_hours, z_w, wQ_tot * 1e3, 'RdBu_r',
r"Total $\langle w'q'\rangle$ ($\times 10^{-3}$ kg kg$^{-1}$ m s$^{-1}$)")
axs[2].set_title(r"Total $\langle w'q' \rangle$")
fig.suptitle('Vertical Moisture Flux — GABLS3', fontsize=15)
plt.show()
else:
print('optMoisture = 0: no moisture data.')

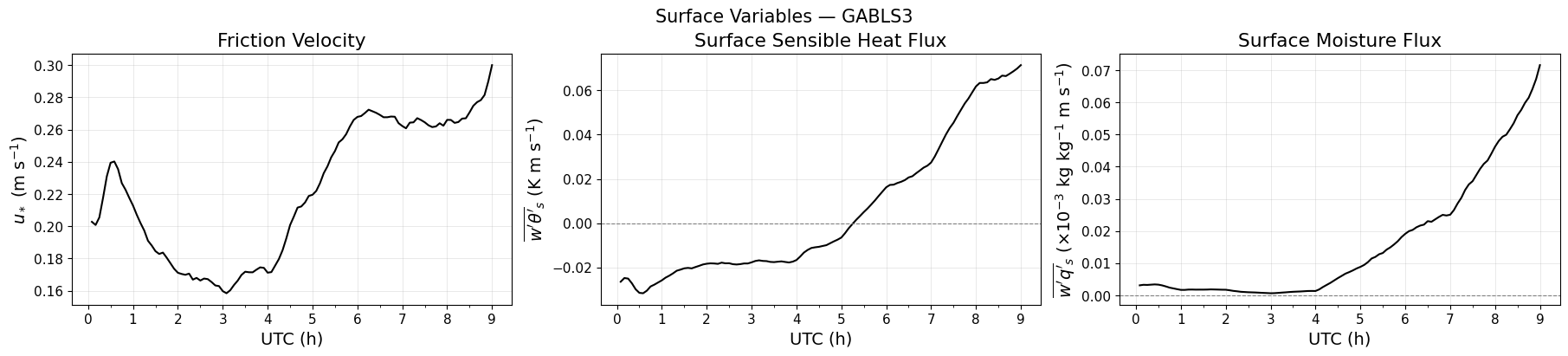

Surface Time Series
Evolution of friction velocity, surface sensible heat flux, and surface moisture flux.
[18]:
ncols = 3 if optMoisture >= 1 else 2
fig, axs = plt.subplots(1, ncols, figsize=(6 * ncols, 4), constrained_layout=True)
axs[0].plot(t_hours, ustar, 'k', linewidth=1.5)
axs[0].set_xlabel(r'UTC (h)')
axs[0].set_ylabel(r'$u_*$ (m s$^{-1}$)')
axs[0].set_title(r'Friction Velocity')
axs[0].set_xticks(utc_ticks)
axs[0].xaxis.set_minor_locator(ticker.MultipleLocator(0.5))
axs[0].grid(True, which='major', alpha=0.4)
axs[1].plot(t_hours, qz_sfc, 'k', linewidth=1.5)
axs[1].axhline(0, color='gray', linewidth=0.8, linestyle='--')
axs[1].set_xlabel(r'UTC (h)')
axs[1].set_ylabel(r"$\overline{w'\theta'}_s$ (K m s$^{-1}$)")
axs[1].set_title(r'Surface Sensible Heat Flux')
axs[1].set_xticks(utc_ticks)
axs[1].xaxis.set_minor_locator(ticker.MultipleLocator(0.5))
axs[1].grid(True, which='major', alpha=0.4)
if optMoisture >= 1:
axs[2].plot(t_hours, qm_sfc * 1e3, 'k', linewidth=1.5)
axs[2].axhline(0, color='gray', linewidth=0.8, linestyle='--')
axs[2].set_xlabel(r'UTC (h)')
axs[2].set_ylabel(r"$\overline{w'q'}_s$ ($\times 10^{-3}$ kg kg$^{-1}$ m s$^{-1}$)")
axs[2].set_title(r'Surface Moisture Flux')
axs[2].set_xticks(utc_ticks)
axs[2].xaxis.set_minor_locator(ticker.MultipleLocator(0.5))
axs[2].grid(True, which='major', alpha=0.4)
fig.suptitle('Surface Variables — GABLS3', fontsize=15)
plt.show()
