Diurnal Cycle over Wangara, Australia: Time–Height Diagnostics

Last updated: June 2026

This notebook visualizes the JAX-ALFA simulation of the Wangara Day 33–34 diurnal cycle. The simulation covers a full 24-hour period from 0900 LST 16 August 1967 to 0900 LST 17 August 1967.

Quantity	Value
Domain	5000 m × 5000 m × 2000 m
Reference grid	\(256^3\)
Roughness length	\(z_0 = 0.01\) m
Screen temperature height	\(z_T = 1.2\) m
Geostrophic wind	time- and height-varying (\(\texttt{optGeoWind}=1\))
SGS model	LASDD-SM (\(\texttt{optSgs}=1\)); run matrix uses LASDD-SM, LASDD-WL, LAD-SM, LAD-WL with SP and DP

Figures show time–height contour plots of mean wind, potential temperature, resolved variances, and total (resolved + SGS) fluxes.

Setup

import os
import re
import glob
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
from pathlib import Path

Output directory and case configuration

from pathlib import Path
def find_repo_root(start=None):
    path = Path(start or ('__file__' in globals() and __file__) or Path.cwd()).resolve()
    for candidate in (path, *path.parents):
        if (candidate / 'examples').is_dir() and (candidate / 'docs').is_dir():
            return candidate
    raise FileNotFoundError('Could not locate jaxalfa repository root')

BaseDir = find_repo_root()
RunDir    = BaseDir / 'examples_A6000ada/DC_Wangara/runs/256x256x256_LASDD_SM_SP'
OutputDir = RunDir / 'output'

# Read case parameters directly from Config.py so the notebook stays in sync.
_cfg = {}
exec((RunDir / 'Config.py').read_text(), _cfg)

nz                 = int(_cfg['nz'])
l_z                = float(_cfg['l_z'])
dt                 = float(_cfg['dt'])
SimTime            = float(_cfg['SimTime'])
T_0                = float(_cfg['T_0'])
optGeoWind         = int(_cfg.get('optGeoWind', 0))
optSgs             = int(_cfg['optSgs'])
OutputInterval_sec = float(_cfg['OutputInterval_sec'])

# LST offset: simulation t=0 corresponds to 0900 LST.
LST_offset = 9.0    # hours

print('BaseDir:', BaseDir)
print('RunDir: ', RunDir)
print(f'nz={nz}, l_z={l_z:g} m, dt={dt:g} s, OutputInterval={OutputInterval_sec:g} s')
print(f'optGeoWind={optGeoWind}, optSgs={optSgs}')

BaseDir: /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa
RunDir:  /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa/examples_A6000ada/DC_Wangara/runs/256x256x256_LASDD_SM_SP
nz=256, l_z=2000 m, dt=0.2 s, OutputInterval=60 s
optGeoWind=1, optSgs=1

Vertical grid

dz = l_z / (nz - 1)

# Half levels — U, V, TH, u2, v2, TH2
z = np.array([(k + 0.5) * dz for k in range(nz)])

# Full levels — w, uw, vw, wTH, txz, tyz, qz, w2
z_w = np.array([k * dz for k in range(nz)])

print(f'dz = {dz:.3f} m,  z[0] = {z[0]:.3f} m,  z[-1] = {z[-1]:.3f} m')

dz = 7.843 m,  z[0] = 3.922 m,  z[-1] = 2003.922 m

Load output files

stat_files = sorted(
    glob.glob(str(OutputDir / 'ALFA_Statistics_Iteration_*.npz')),
    key=lambda x: int(re.search(r'Iteration_(\d+)', x).group(1))
)
n_files = len(stat_files)
missing_stats = (n_files == 0)
print(f'Found {n_files} output files in {OutputDir}')

if missing_stats:
    raise FileNotFoundError(
        f'No statistics files found in {OutputDir}. Run the Wangara case first; '
        'the notebook expects ALFA_Statistics_Iteration_*.npz files.'
    )

Found 1440 output files in /Users/sukantabasu/Dropbox/Codes/LES/JAX-ALFA/jaxalfa/examples_A6000ada/DC_Wangara/runs/256x256x256_LASDD_SM_SP/output

# Build time axis from file iteration numbers.
if missing_stats:
    t_hours = np.array([0.0, SimTime / 3600.0])
else:
    iterations = np.array([
        int(re.search(r'Iteration_(\d+)', f).group(1)) for f in stat_files
    ])
    t_hours = iterations * dt / 3600.0          # simulation time (h)

LST = t_hours + LST_offset                      # Local Standard Time (h)

print(f'Time range: {t_hours[0]:.3f} - {t_hours[-1]:.2f} h  '
      f'(LST {LST[0]:.1f} - {LST[-1]:.1f} h)')

Time range: 0.017 - 24.00 h  (LST 9.0 - 33.0 h)

# Allocate (n_files, nz) arrays for all quantities.
U   = np.zeros((n_files, nz))
V   = np.zeros((n_files, nz))
TH  = np.zeros((n_files, nz))
u2  = np.zeros((n_files, nz))
v2  = np.zeros((n_files, nz))
w2  = np.zeros((n_files, nz))
TH2 = np.zeros((n_files, nz))
uw  = np.zeros((n_files, nz))
vw  = np.zeros((n_files, nz))
wTH = np.zeros((n_files, nz))
txz = np.zeros((n_files, nz))
tyz = np.zeros((n_files, nz))
qz  = np.zeros((n_files, nz))
ustar   = np.zeros(n_files)
qz_sfc  = np.zeros(n_files)

required = ['U', 'V', 'TH', 'u2', 'v2', 'w2', 'TH2',
            'uw', 'vw', 'wTH', 'txz', 'tyz', 'qz', 'ustar', 'qz_sfc']

if missing_stats:
    for arr in [U, V, TH, u2, v2, w2, TH2, uw, vw, wTH, txz, tyz, qz]:
        arr[:] = np.nan
    ustar[:] = np.nan
    qz_sfc[:] = np.nan

for i, f in enumerate(stat_files):
    with np.load(f) as d:
        missing = [k for k in required if k not in d]
        if missing:
            raise KeyError(f'{f} is missing arrays: {missing}')

        U[i]   = d['U']
        V[i]   = d['V']
        TH[i]  = d['TH']
        u2[i]  = d['u2']
        v2[i]  = d['v2']
        w2[i]  = d['w2']
        TH2[i] = d['TH2']
        uw[i]  = d['uw']
        vw[i]  = d['vw']
        wTH[i] = d['wTH']
        txz[i] = d['txz']
        tyz[i] = d['tyz']
        qz[i]  = d['qz']
        ustar[i]  = np.asarray(d['ustar']).mean()
        qz_sfc[i] = np.asarray(d['qz_sfc']).mean()

# Total (resolved + SGS) vertical fluxes.
uw_tot  = uw  + txz
vw_tot  = vw  + tyz
wTH_tot = wTH + qz

print('Data loaded.')

Data loaded.

Plot style

plt.rcParams.update({
    'text.usetex'    : False,
    'font.size'      : 13,
    'axes.labelsize' : 14,
    'xtick.labelsize': 11,
    'ytick.labelsize': 11,
})

# Height limit for all panels (m).
z_max = 1500.0

# LST tick positions every 3 hours.
lst_ticks = np.arange(9, 34, 3)

def th_plot(ax, LST, z_axis, field, cmap, label, z_max=z_max):
    """Standard time-height pcolormesh helper."""
    pc = ax.pcolormesh(LST, z_axis, field.T,
                       cmap=cmap, shading='auto')
    cb = plt.colorbar(pc, ax=ax, pad=0.02)
    cb.set_label(label)
    ax.set_xlabel(r'LST (h)')
    ax.set_ylabel(r'$z$ (m)')
    ax.set_ylim(0, z_max)
    ax.set_xticks(lst_ticks)
    ax.xaxis.set_minor_locator(ticker.MultipleLocator(1))
    return pc

def symm_limits(data):
    """Return vmin/vmax centred on zero for a diverging colormap."""
    amax = np.nanmax(np.abs(data))
    return -amax, amax

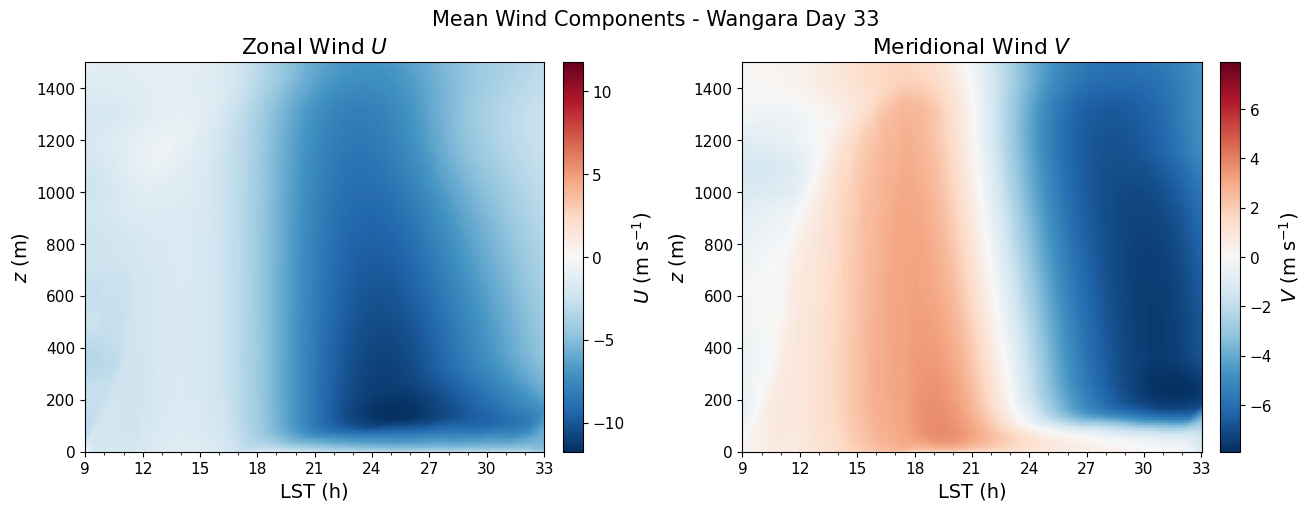

Mean Wind Components

Time–height evolution of the planar-mean zonal (\(U\)) and meridional (\(V\)) wind.

fig, axs = plt.subplots(1, 2, figsize=(13, 5), constrained_layout=True)

pc = th_plot(axs[0], LST, z, U, 'RdBu_r', r'$U$ (m s$^{-1}$)')
pc.set_clim(*symm_limits(U[:, z <= z_max]))
axs[0].set_title(r'Zonal Wind $U$')

pc = th_plot(axs[1], LST, z, V, 'RdBu_r', r'$V$ (m s$^{-1}$)')
pc.set_clim(*symm_limits(V[:, z <= z_max]))
axs[1].set_title(r'Meridional Wind $V$')

fig.suptitle('Mean Wind Components - Wangara Day 33', fontsize=15)
plt.show()

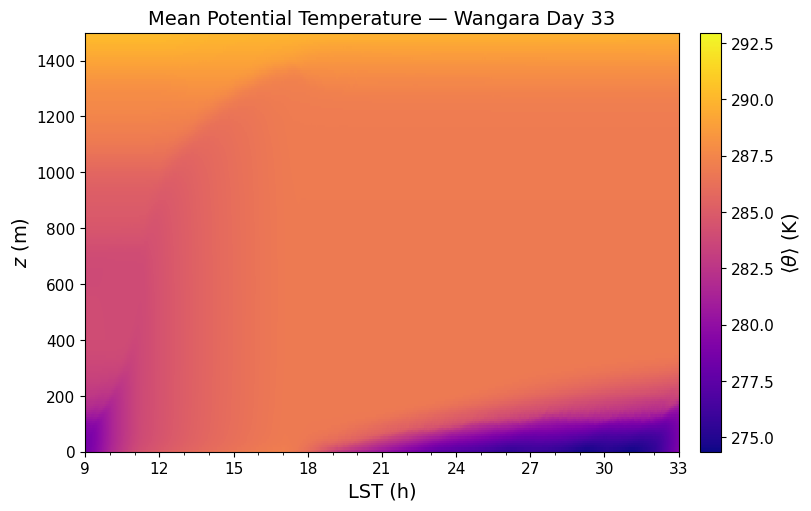

Mean Potential Temperature

The diurnal heating and nocturnal cooling are clearly visible.

fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)

th_plot(ax, LST, z, TH, 'plasma', r'$\langle\theta\rangle$ (K)')
ax.set_title(r'Mean Potential Temperature — Wangara Day 33', fontsize=14)
plt.show()

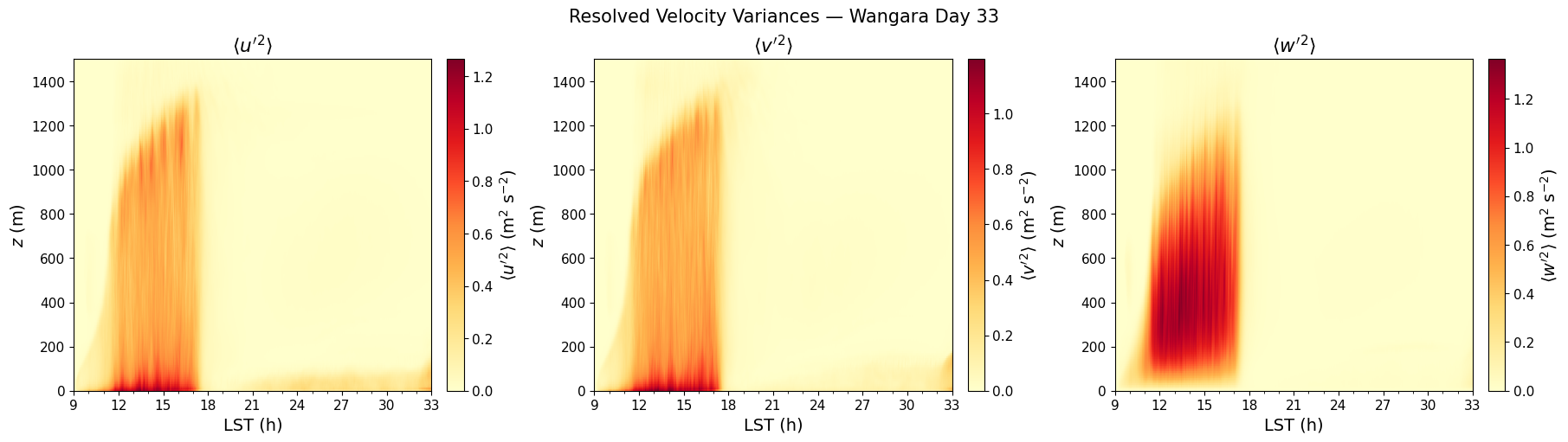

Resolved Velocity Variances

The resolved turbulent kinetic energy components; \(\sigma_w^2\) is on full levels.

fig, axs = plt.subplots(1, 3, figsize=(18, 5), constrained_layout=True)

th_plot(axs[0], LST, z,   u2, 'YlOrRd', r"$\langle u'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[0].set_title(r"$\langle u'^2 \rangle$")

th_plot(axs[1], LST, z,   v2, 'YlOrRd', r"$\langle v'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[1].set_title(r"$\langle v'^2 \rangle$")

th_plot(axs[2], LST, z_w, w2, 'YlOrRd', r"$\langle w'^2 \rangle$ (m$^2$ s$^{-2}$)")
axs[2].set_title(r"$\langle w'^2 \rangle$")

fig.suptitle('Resolved Velocity Variances — Wangara Day 33', fontsize=15)
plt.show()

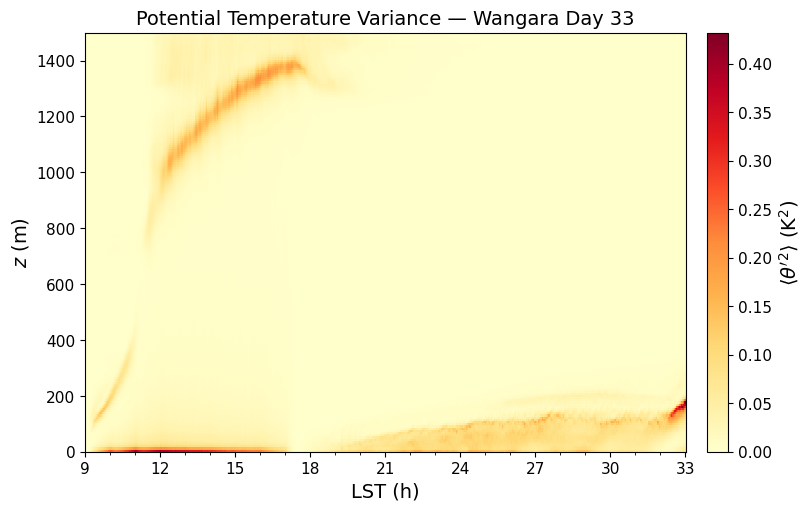

Potential Temperature Variance

fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)

th_plot(ax, LST, z, TH2, 'YlOrRd', r"$\langle\theta'^2\rangle$ (K$^2$)")
ax.set_title(r"Potential Temperature Variance — Wangara Day 33", fontsize=14)
plt.show()

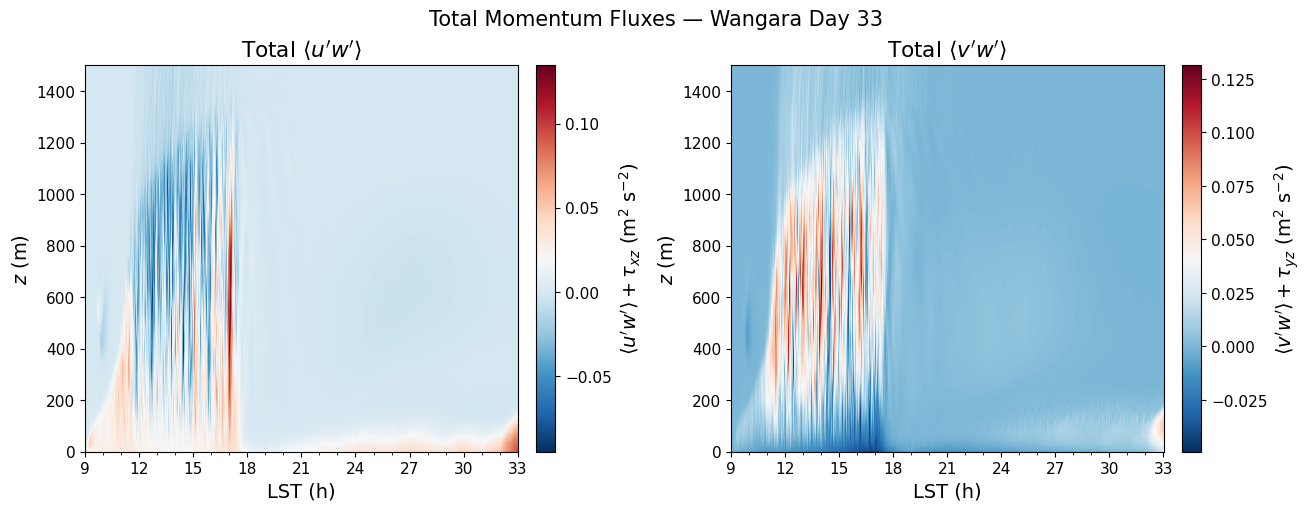

Total Momentum Fluxes (Resolved + SGS)

\[\langle u'w' \rangle_{\mathrm{tot}} = \langle u'w' \rangle + \tau_{xz}, \qquad \langle v'w' \rangle_{\mathrm{tot}} = \langle v'w' \rangle + \tau_{yz}\]

fig, axs = plt.subplots(1, 2, figsize=(13, 5), constrained_layout=True)

th_plot(axs[0], LST, z_w, uw_tot, 'RdBu_r',
        r"$\langle u'w'\rangle + \tau_{xz}$ (m$^2$ s$^{-2}$)")
axs[0].set_title(r"Total $\langle u'w' \rangle$")

th_plot(axs[1], LST, z_w, vw_tot, 'RdBu_r',
        r"$\langle v'w'\rangle + \tau_{yz}$ (m$^2$ s$^{-2}$)")
axs[1].set_title(r"Total $\langle v'w' \rangle$")

fig.suptitle('Total Momentum Fluxes — Wangara Day 33', fontsize=15)
plt.show()

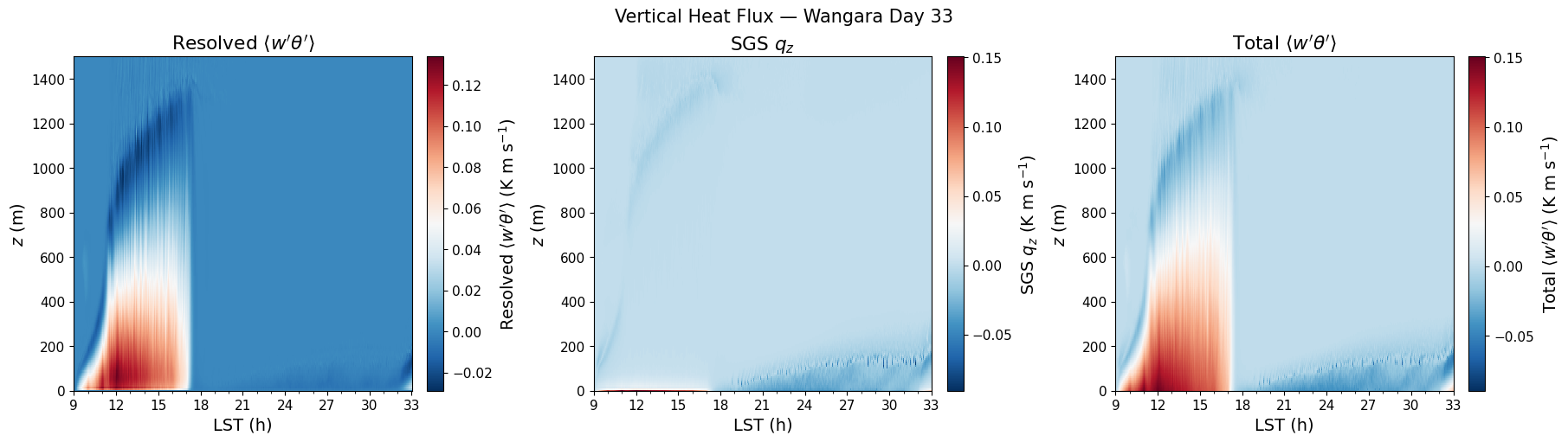

Total Heat Flux (Resolved + SGS)

\[\langle w'\theta' \rangle_{\mathrm{tot}} = \langle w'\theta' \rangle + q_z\]

Positive during the convective daytime hours, negative during the nocturnal stable phase.

fig, axs = plt.subplots(1, 3, figsize=(18, 5), constrained_layout=True)

th_plot(axs[0], LST, z_w, wTH,     'RdBu_r',
        r"Resolved $\langle w'\theta'\rangle$ (K m s$^{-1}$)")
axs[0].set_title(r"Resolved $\langle w'\theta' \rangle$")

th_plot(axs[1], LST, z_w, qz,      'RdBu_r',
        r"SGS $q_z$ (K m s$^{-1}$)")
axs[1].set_title(r"SGS $q_z$")

th_plot(axs[2], LST, z_w, wTH_tot, 'RdBu_r',
        r"Total $\langle w'\theta'\rangle$ (K m s$^{-1}$)")
axs[2].set_title(r"Total $\langle w'\theta' \rangle$")

fig.suptitle('Vertical Heat Flux — Wangara Day 33', fontsize=15)
plt.show()

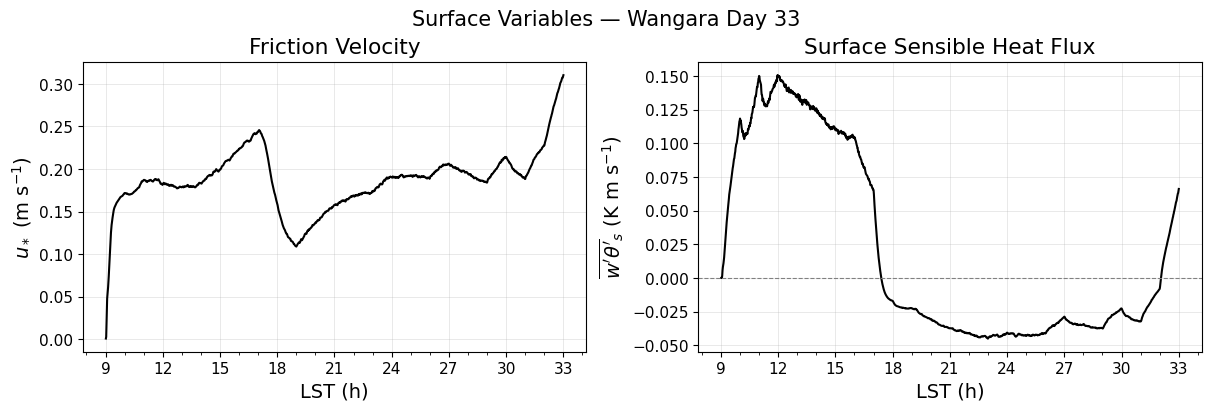

Surface Time Series

Evolution of friction velocity \(u_*\) and surface sensible heat flux \(\overline{w'\theta'}_s\) throughout the diurnal cycle.

fig, axs = plt.subplots(1, 2, figsize=(12, 4), constrained_layout=True)

axs[0].plot(LST, ustar, 'k', linewidth=1.5)
axs[0].set_xlabel(r'LST (h)')
axs[0].set_ylabel(r'$u_*$ (m s$^{-1}$)')
axs[0].set_title(r'Friction Velocity')
axs[0].set_xticks(lst_ticks)
axs[0].xaxis.set_minor_locator(ticker.MultipleLocator(1))
axs[0].grid(True, which='major', alpha=0.4)

axs[1].plot(LST, qz_sfc, 'k', linewidth=1.5)
axs[1].axhline(0, color='gray', linewidth=0.8, linestyle='--')
axs[1].set_xlabel(r'LST (h)')
axs[1].set_ylabel(r"$\overline{w'\theta'}_s$ (K m s$^{-1}$)")
axs[1].set_title(r'Surface Sensible Heat Flux')
axs[1].set_xticks(lst_ticks)
axs[1].xaxis.set_minor_locator(ticker.MultipleLocator(1))
axs[1].grid(True, which='major', alpha=0.4)

fig.suptitle('Surface Variables — Wangara Day 33', fontsize=15)
plt.show()
